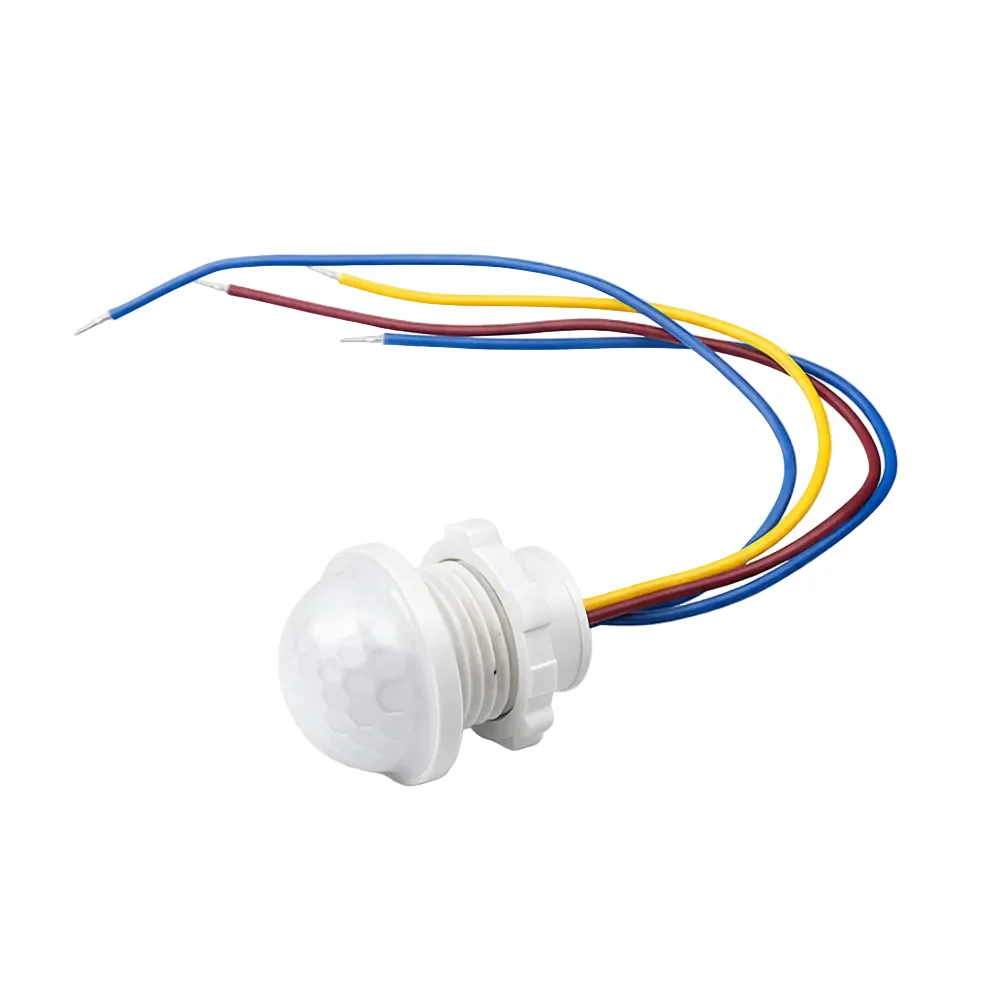

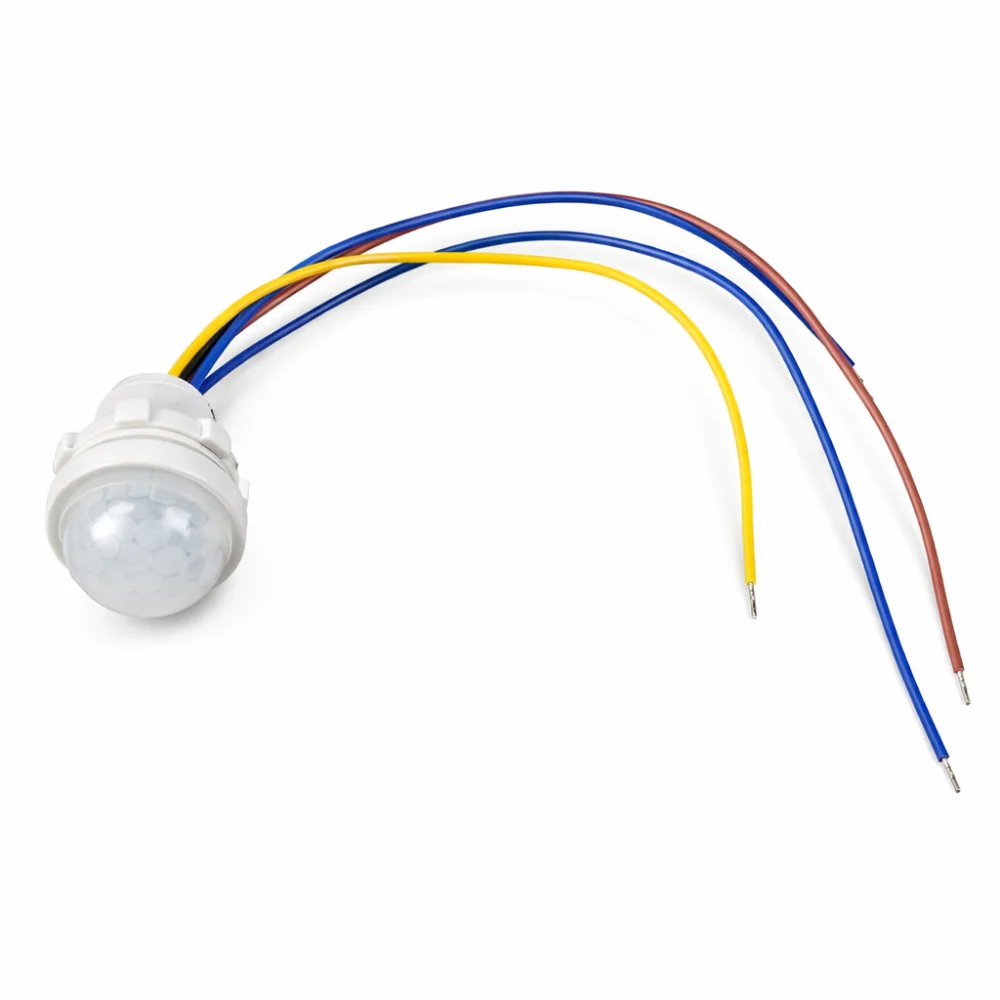

220V AC PIR Motion Sensor Switch Module with Light Control – 30-Second Delay, 40W

Product Description

The AC 220V PIR Motion Sensor Switch is an automatic lighting control module designed to switch lights ON when human movement is detected and turn them OFF automatically after a preset delay. Using Passive Infrared (PIR) sensing technology, the sensor detects changes in infrared radiation caused by moving people or objects and controls the connected lighting load accordingly.

With a wide AC 110–240V input range, this compact PIR sensor switch is suitable for a variety of residential, commercial, and automation applications. It can be used with compatible LED lamps, fluorescent lights, and energy-saving lamps for convenient hands-free lighting and energy-efficient operation.

The sensor offers a detection range of approximately 4–6 meters and includes light-sensing functionality to help prevent unnecessary switching during bright ambient conditions. Its compact 45 × 40 × 25mm design makes it suitable for installation in space-constrained applications.

Key Features

• PIR-based infrared motion detection
• Automatic ON/OFF lighting control
• Wide AC 110–240V operating voltage
• Suitable for 220V AC lighting applications
• Motion detection range of approximately 4–6 meters
• Built-in ambient light sensitivity detection
• Automatic switch-off after approximately 30 seconds
• Compatible with suitable LED, fluorescent, and energy-saving lamps
• Compact and lightweight design
• Easy to integrate into automatic lighting systems
• Helps reduce unnecessary power consumption
• Ideal for home, office, commercial, and automation projects

Technical Specifications

*Verify the actual load compatibility before connecting high-power or specialized loads.

How the PIR Motion Sensor Works

The Passive Infrared sensor detects changes in infrared radiation within its sensing area. When a person moves within the detection range, the sensor triggers the connected light or electrical load.

After movement is no longer detected, the output automatically switches OFF after the preset delay.

This makes the module useful where lights need to operate automatically without requiring a conventional wall switch.

Light Sensitivity Control

The built-in photosensing function helps determine whether the surrounding environment is sufficiently dark before activating the connected lighting.

Available light-sensitivity settings include:

• ≤2 Lux
• ≤25 Lux
• 2000 Lux

This feature helps prevent unnecessary activation of lights when sufficient ambient light is already available.

Note: This version uses preset sensitivity/delay settings and does not have additional external variable resistors for continuously adjusting sensitivity or delay.

Applications

The AC 220V PIR Motion Sensor Switch can be used for:

• Automatic LED light control
• Motion-activated lighting
• Staircase lighting
• Hallway lighting
• Bathroom lighting
• Entrance lighting
• Garage lighting
• Basement lighting
• Corridor lighting
• Office automation
• Home automation
• Commercial lighting systems
• Energy-saving lighting applications
• DIY electrical automation projects

Suitable for Automatic Lighting Projects

This compact 220V PIR sensor switch is an excellent choice for projects where lighting needs to operate automatically based on human movement.

It can help provide:

Motion Detected → Light ON → No Motion → Automatic OFF

This provides convenient hands-free operation while helping reduce the time lights remain unnecessarily switched on.

Compact Design

With dimensions of approximately 45 × 40 × 25mm and a fitting diameter of 40mm, the sensor can be integrated into compact lighting installations and automation enclosures.

Its lightweight construction makes it suitable for both new installations and replacement applications.

Package Includes

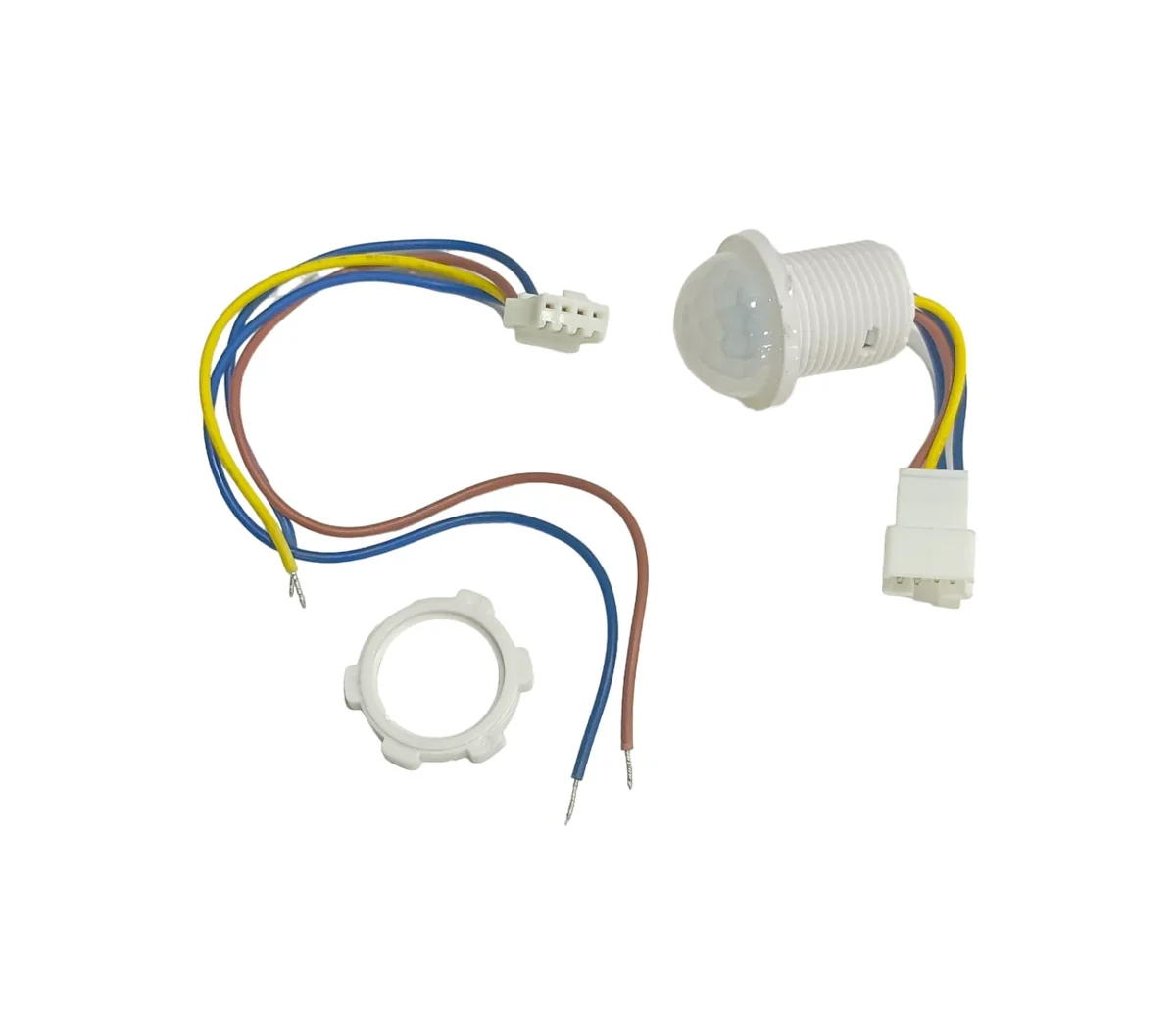

• 1 × AC 220V PIR Detector Infrared Motion Sensor Switch

Important Safety Note

⚠️ This module operates directly with AC mains voltage (110–240V AC).

Installation and wiring should be performed by a qualified person. Always disconnect mains power before installation or wiring. Do not touch exposed terminals when the module is connected to the AC supply.

Verify the connected lamp/load rating and wiring configuration before use.
