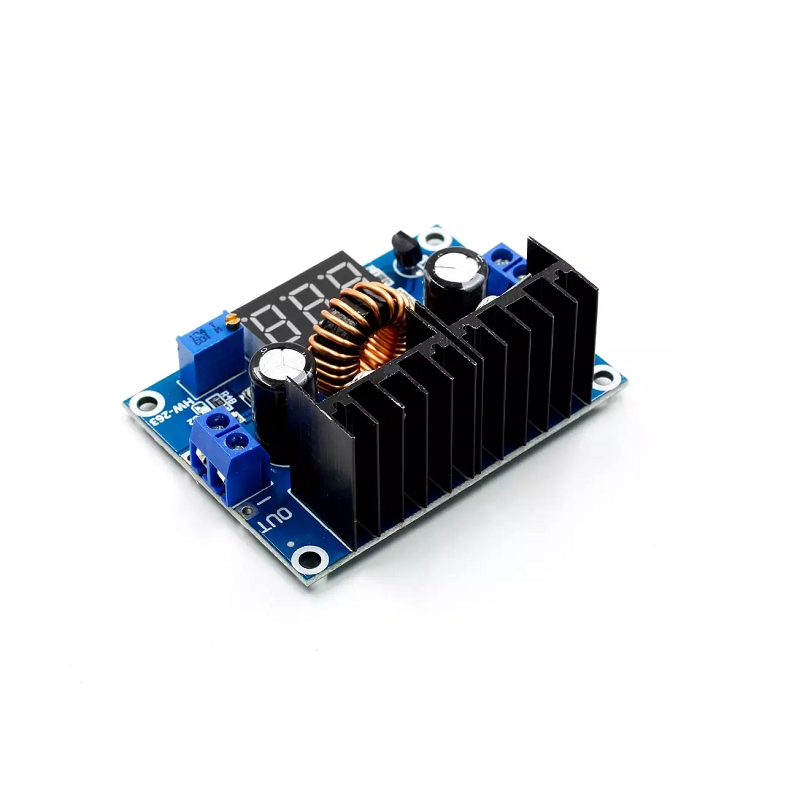

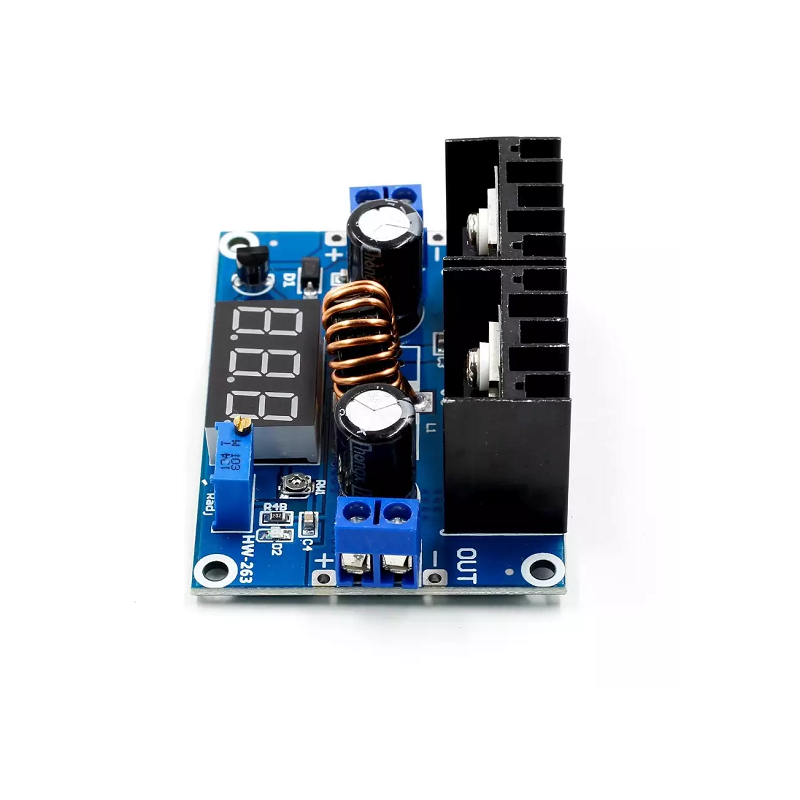

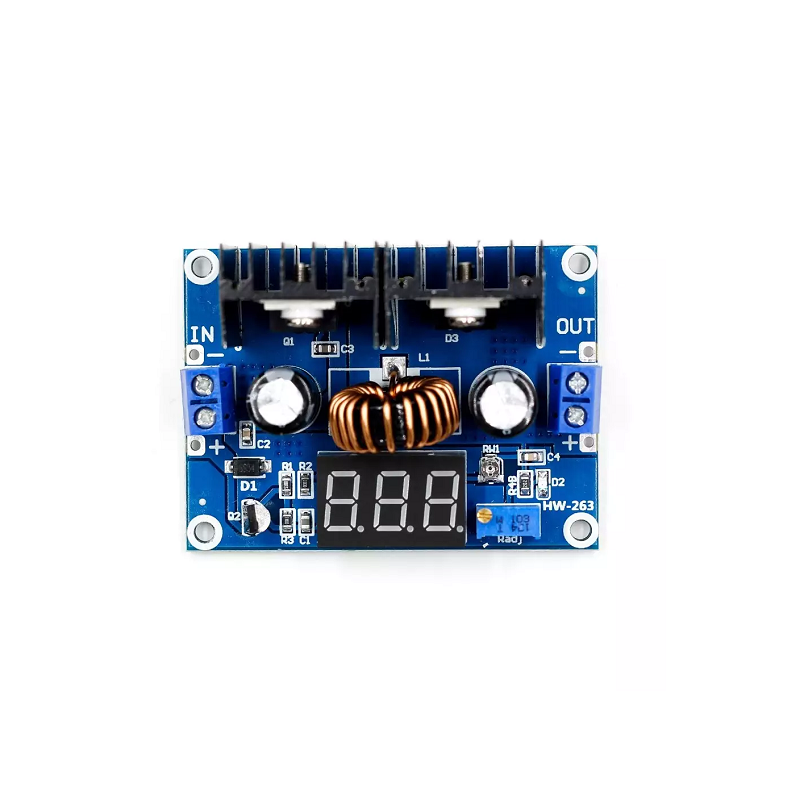

DC 4-40V 8A Voltage Regulator Module Digital PWM Adjustabl DC-DC Step Down Voltage Regulator DC XL4016E1

299.00 (inc. GST)

In stock

  • Cash on Delivery available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 5 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist

XL4016 with Display 8A Module Specifications:

  • Input voltage range: 4V-40V DC
  • Output voltage range: 1.25V-36V DC adjustable.
  • Output current: 0-8A.
  • Output Power: 200W
  • High efficiency upto 94%
  • The built-in thermal shutdown function
  • Built-in current limit function
  • In-Built output short protection function
SKU: RY-XL4016E1 Category:

Description

This XL4016E1 Step-Down Power Supply Module with voltage rating 4-40VDC to 1.25-36VDC. This module is rated for a maximum power of 200W. The output current for the module can be increased to 8A with the addition of an external fan onto the heatsinks to cool the IC.

Note: This Product is available in three different variants (XH-M404/HW-263/HCW-P402) with the same working, we will ship it randomly.

Features:

  1. Adjustment method: first correct input power (between 4-40V) then multimeter to monitor the output voltage and adjust potentiometer (usually clockwise turn boost, buck turn counterclockwise),
  2. Input: IN+ input positive IN- input negative
  3. Output: OUT+ output positive OUT- output negative
  4. Static power consumption is only about 6mA.
  5. Connection: Welding, plus pin can be directly soldered after the PCB.
  6. Short circuit protection: current limiting, thermal protection, self-recovery.
  7. Non-isolated step-down (BUCK)switching regulator.
  8. Short circuit protection: Current limiting, self-recovery
  9. Potentiometer adjustment direction is as Clockwise (increase) and Anti-clockwise (decrease)
  10. Non-synchronous rectification

Package Includes:

1 x DC 4-40V 8A Voltage Regulator Module Digital PWM Adjustable DC-DC Step Down Voltage Regulator DC XL4016E1

Specifications:

Input Voltage (V) 4 to 40VDC
Output Voltage (V) 1.25 to 36VDC
Max Current (A) 8
Maximum Power (W) 200
Efficiency 94%
Switching Frequency (KHz) 180
Length (mm) 63
Width (mm) 46
Height (mm) 25
Weight (gm) 45
