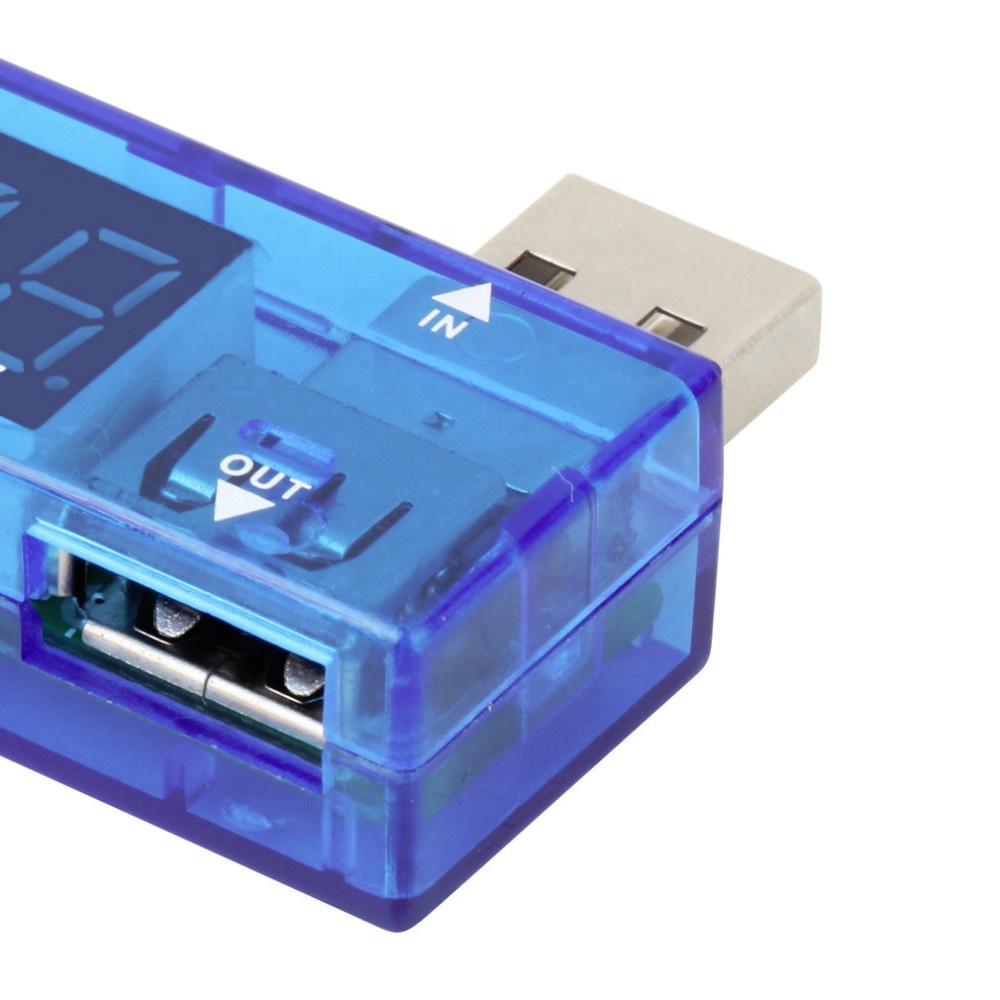

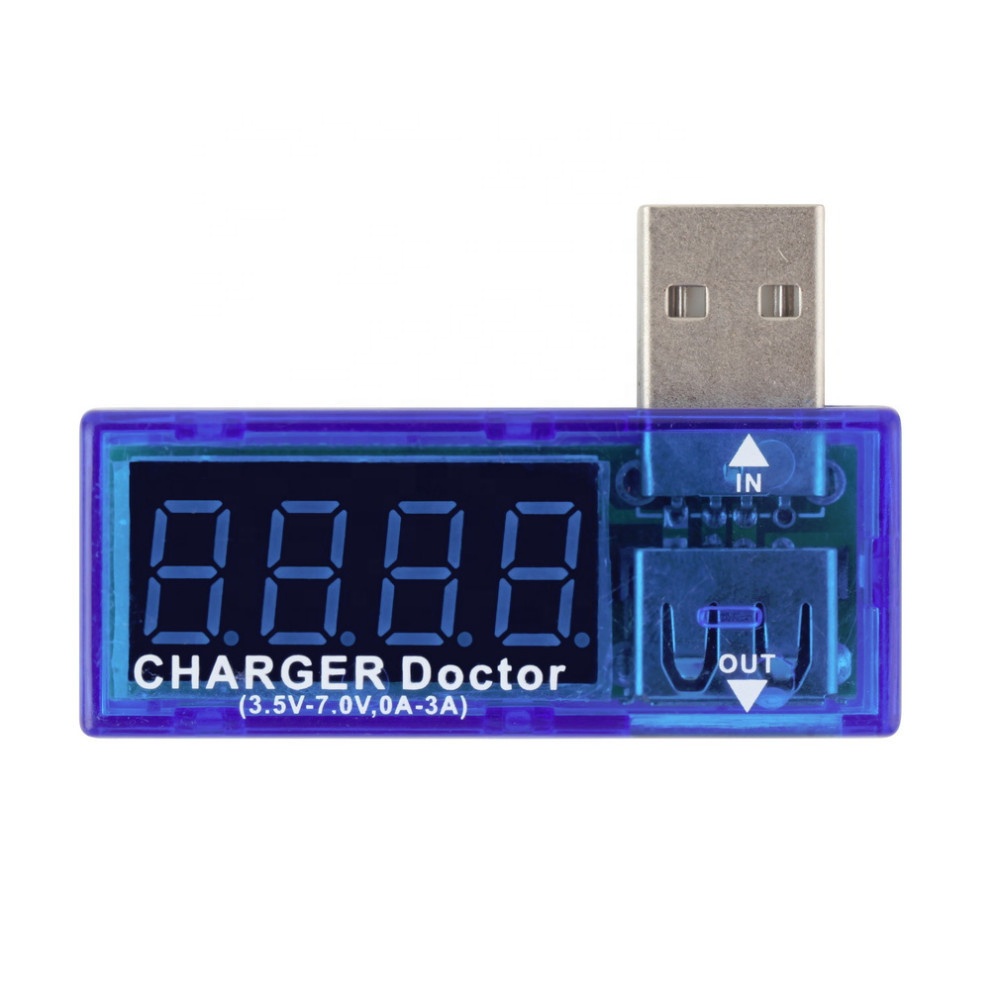

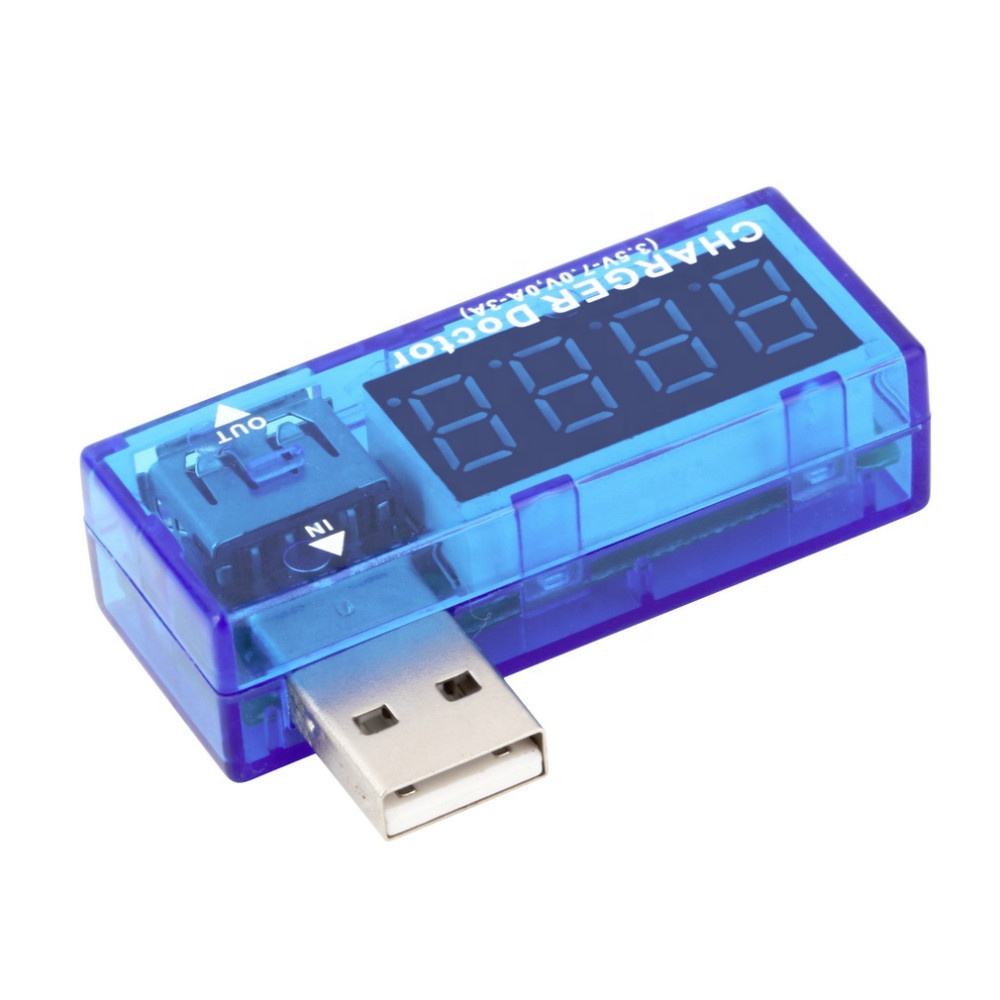

USB Charger Doctor (Voltmeter Ammeter)
₹139.00 (inc. GST)
Out of stock
This USB Charger Doctor Module is used to measure the voltage and current drawn by any USB port and project. This module is useful to measure the voltage and current draw of USB devices. This modules plugs in between the USB Port and the USB device and reports the power consumed by the device.
Description
This USB Charger Doctor Module is used to measure the voltage and current drawn by any USB port and project. This module is useful to measure the voltage and current draw of USB devices. This modules plugs in between the USB Port and the USB device and reports the power consumed by the device.
You can use this device from 3.5-7VDC input voltage (although most USB devices tend to hover around 4.75 to 5.25) and up to 2.5A of current. It flips between voltage and current readouts every 3 seconds or so. It’s a very handy tool for testing USB devices, checking load levels and debugging battery chargers and boost converters.
Specifications
- Reports voltage and current from USB port to help debug projects
- You can use this device from 3.5-7VDC input voltage (although most USB devices tend to hover around 4.75 to 5.25) and up to 3A of current USB 1.x and 2.x – all data speeds. Does not have USB v3 pins so USB v3 connections will automatically downgrade to v2
- Scope of work: Current (0~2.5A) can detect mobile phone
- Charger voltage compliance DC 5V
- Operating Range : U = 3 ~ 7.5V I = 0 ~ 2.5A
- Resolution : Voltage 10mV current 1mA
- Error : voltage <± 1% current <± 2%
- Dimensions21mm x 53mm x 15mm / 0.8″ x 2.1″ x 0.6″
- USB Plug: 13mm / 0.5″
- Weight: 16.2g
- USB 1.x and 2.x – all data speeds. Does not have USB v3 pins so USB v3 connections will automatically downgrade to v2
- Operating Temperature: 0-60ºC
Package Includes :
1 x USB Charger Doctor (Voltmeter Ammeter)
