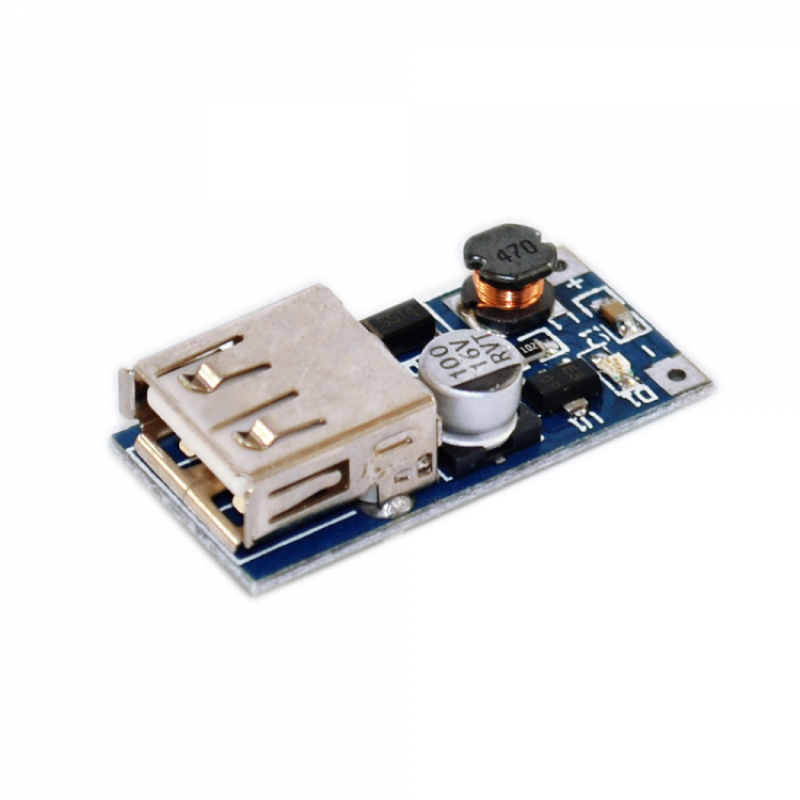

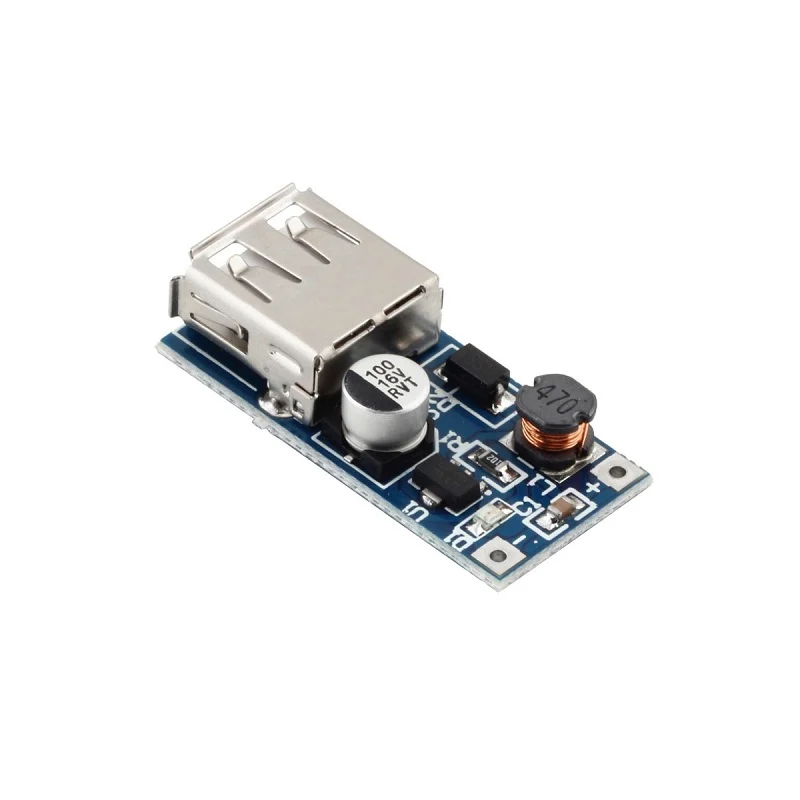

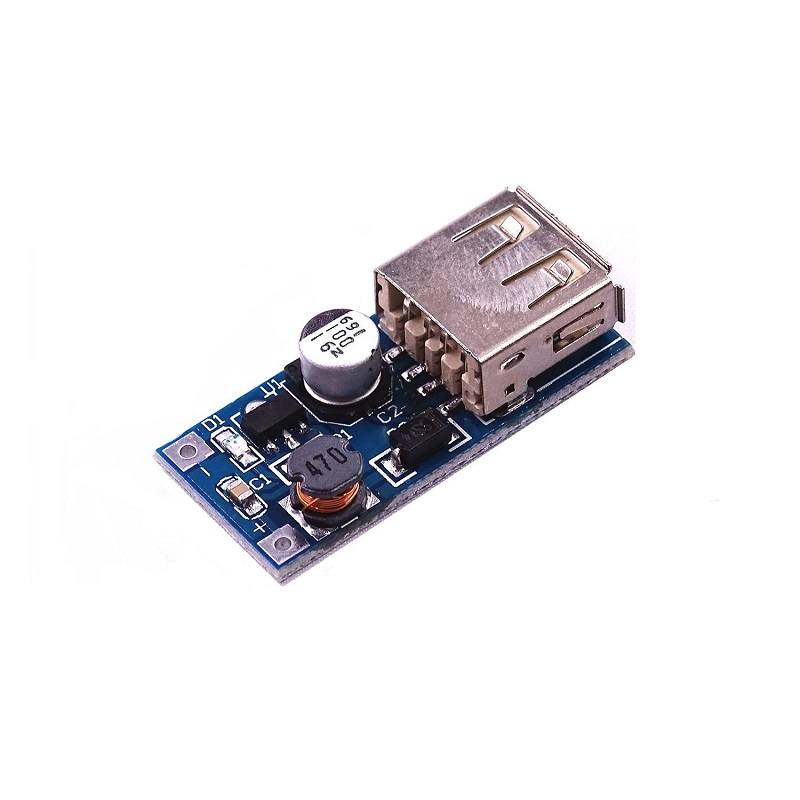

DC-DC Boost Module (0.9V~5V) to 5V 600MA USB Step-up Board 5V Output

(1 customer review)

39.00 (inc. GST)

In stock

Quantity based pricing

Quantity Discount (%) Price
1 - 10 39.00
11 - 20 5.13 % 37.00
21 - 50 10.26 % 35.00
51+ 12.82 % 34.00
  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  • Input voltage: 0.9-5V DC
  • Ultra-small PFM control onboard DC / DC boost controller chip
  • Output voltage: 5V DC
  • Output Current: 500 to 600mA
  • On-board input voltage indicator LED
SKU: RY-5VDCBOOST Category:

Description

DC-DC Boost Module (0.9V~5V) to 5V 600MA USB Step-up Board 5V Output

Great Step-up Module with 0.9-5V input, output 5V for many digital devices, so this is really a great module for designing a portable charger. Useful for your USB charger projects and onboard USB device supply solutions. (ie GoPro cameras)

You can supply it with single-cell LiPO or an AA size batter or others. Two AA batteries can output a current of 500 ~ 600MA, a single AA battery power supply can output 200ma current supply, great for mobile phones camera, single-chip, digital products supply.

Applications:
  1. USB voltage regulator for USB-powered device.
  2. This module will bring the USB voltage required for your application at regulated 5V output.
  3. Various USB devices need 5V from low voltage batteries.
  4. Charge mobile phone/MP4/MP3 from AA battery when traveling

Features:

  1. The module adopts a high-performance imported chip, performance is superior to the common module.
  2. Work with indicator light.
  3. Take the USB female, a wide range of Uses.
  4. A single AA battery power supply can output a current up to 200~300 ma.
  5. Two AA batteries to the output current of 500~600 mA.
  6. Work from battery voltage as low as 0.9V, allowing you to maximize battery use.
  7. If your USB device is critical on 5V operation you can use this module.

Package Includes:

1 x DC-DC 0.9V-5V to 5V 600MA Step-Up Boost USB Module
