ESP32 CAM WiFi Module Bluetooth with OV2640 Camera Module 2MP For Face Recognization

(4 customer reviews)

489.00 (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  1. Flash LED off: 180mA @ 5V.
  2. Flash LED on to maximum brightness: 310mA @ 5V.
  3. Deep-sleep: 6mA @ 5V min.
  4. Modem-sleep: 20mA @ 5V min.
  5. Light-sleep: 6.7mA @ 5V min.

Description

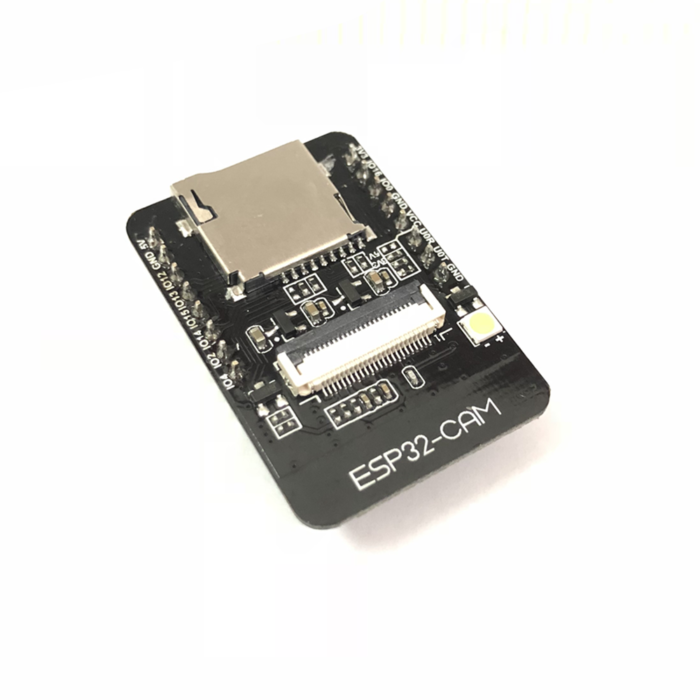

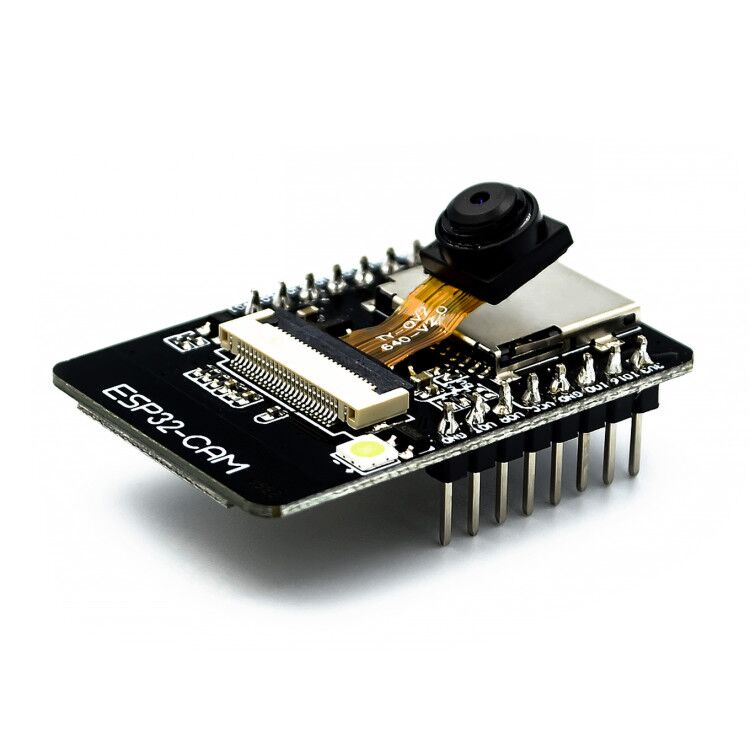

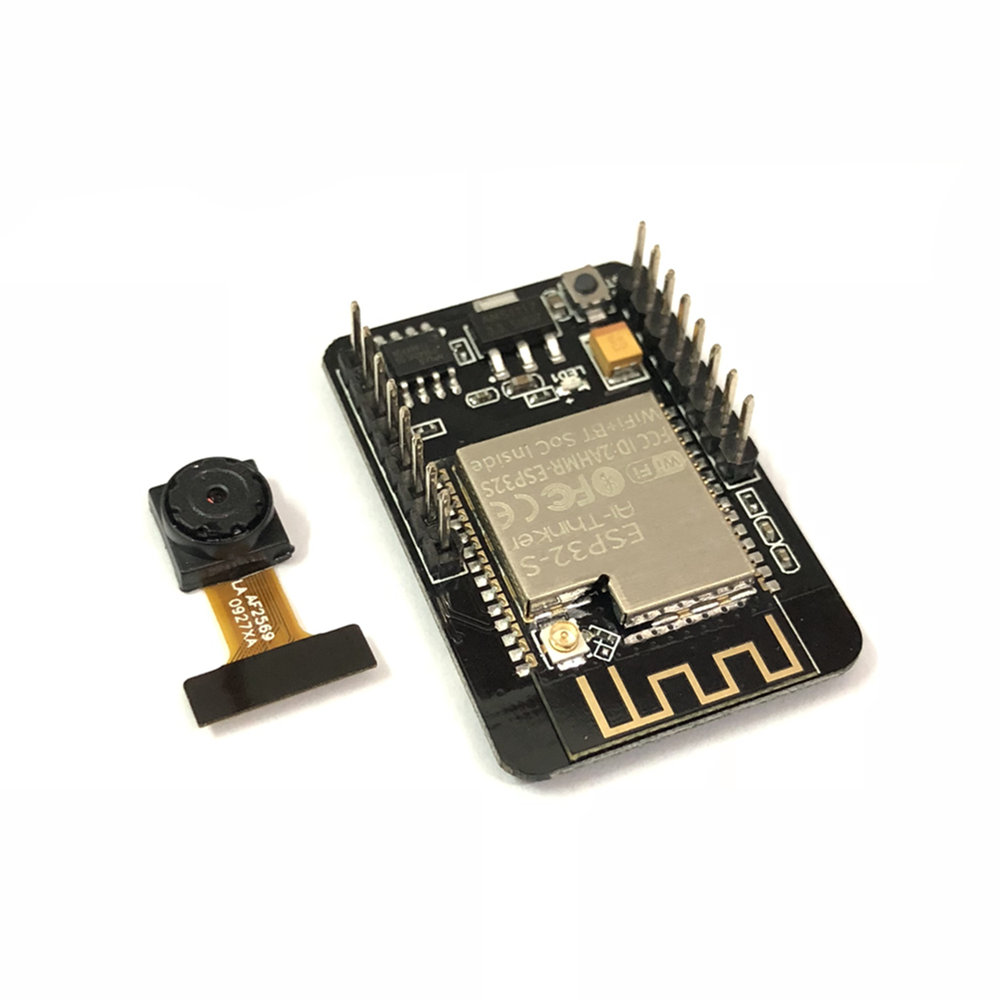

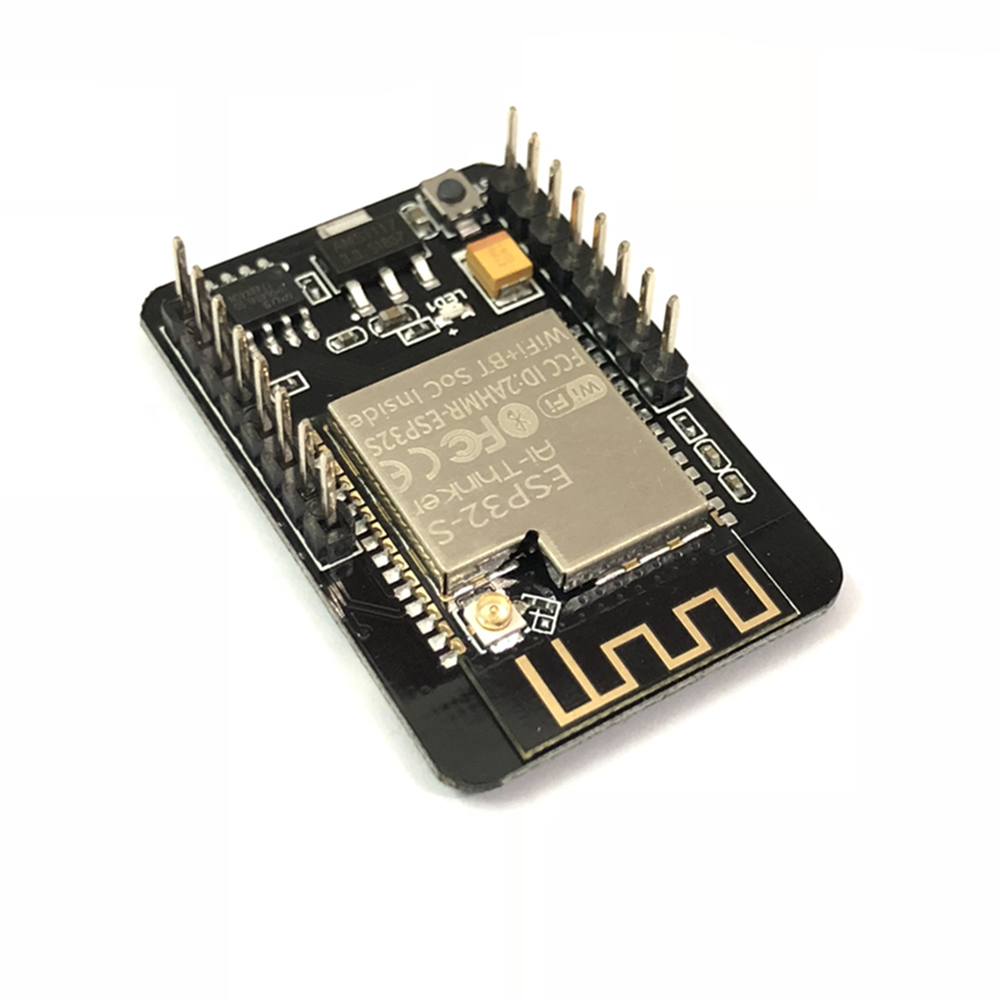

The ESP32 CAM is a very small camera module with the ESP32-S chip. Besides the OV2640 camera, and several GPIOs to connect peripherals, it also features a microSD card slot that can be useful to store images taken with the camera or to store files to serve to clients.

ESP32-CAM Features :

  1. The smallest 802.11b/g/n Wi-Fi BT SoC module.
  2. Low power 32-bit CPU, can also serve the application processor.
  3. Up to 160MHz clock speed, summary computing power up to 600 DMIPS.
  4. Built-in 520 KB SRAM, external 4MPSRAM.
  5. Supports UART/SPI/I2C/PWM/ADC/DAC.
  6. Support OV2640 and OV7670 cameras, built-in flash lamp.
  7. Support image WiFI upload.
  8. Supports TF card.
  9. Supports multiple sleep modes.
  10. Embedded Lwip and FreeRTOS.
  11. Supports STA/AP/STA+AP operation mode.
  12. Support Smart Config/AirKiss technology.
  13. Support for serial port local and remote firmware upgrades (FOTA).

Specifications :

  1. Wireless Module: ESP32-S WiFi 802.11 b/g/n + Bluetooth 4.2 LE module with PCB antenna, u.FL connector, 32Mbit SPI flash, 4MBit PSRAM.
  2. External Storage: micro SD card slot up to 4GB.
  3. Camera
    • FPC connector.
    • Support for OV2640 (sold with a board) or OV7670 cameras.
    • Image Format: JPEG( OV2640 support only ), BMP, grayscale.
    • LED flashlight.
  4. Expansion: 16x through-holes with UART, SPI, I2C, PWM.
  5. Misc: Reset button.
  6. Power Supply: 5V via pin header.
  7. Power Consumption.
    1. Flash LED off: 180mA @ 5V.
    2. Flash LED on to maximum brightness: 310mA @ 5V.
    3. Deep-sleep: 6mA @ 5V min.
    4. Modem-sleep: 20mA @ 5V min.
    5. Light-sleep: 6.7mA @ 5V min.
  8. Dimensions (ESP32): 40 x 27 x 12 (LxWxH) mm.
  9. Temperature Range: Operating: -20 ℃ ~ 85 ℃; storage: -40 ℃ ~ 90 ℃ @ < 90%RH.

Package Includes :

1 x ESP32 CAM WiFi Module.

1 x OV2640 Camera Module 2MP.
