Sale!

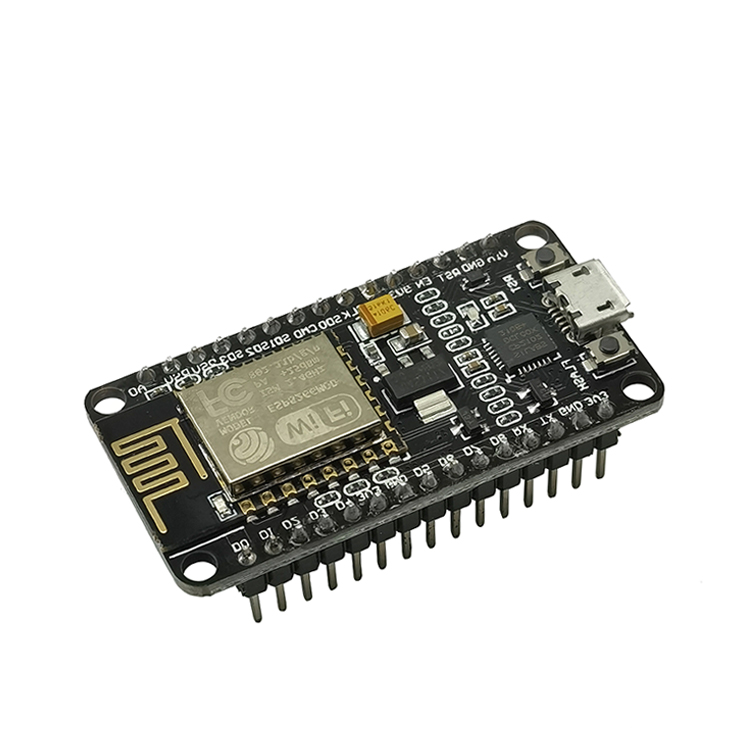

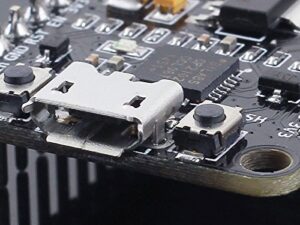

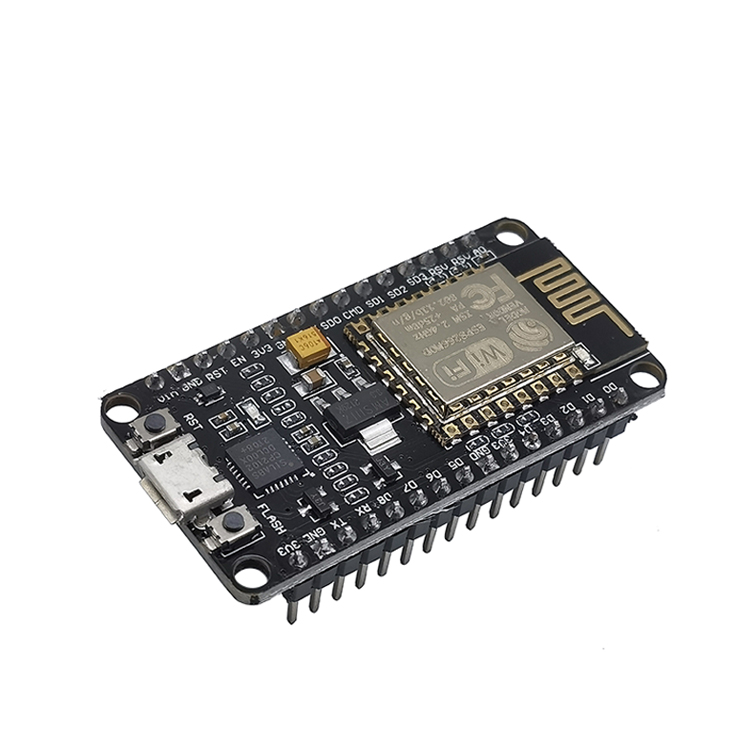

NodeMCU CP2102 Board ESP8266

(2 customer reviews)

Original price was: ₹299.00.Current price is: ₹289.00. (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist

NodeMCU CP2102 The NodeMCU (Node MicroController Unit) is an open-source software and hardware development environment built around an inexpensive System-on-a-Chip (SoC) called the ESP8266

Operating Voltage5V
Flash Memory4Mb
Processor speed80-160MHz
RAM32K + 80K
GPIOs16
ADC1, 10-bit

Description

In NodeMCU CP2102 the NodeMCU (Node MicroController Unit) is an open-source software and hardware development environment built around an inexpensive System-on-a-Chip (SoC) called the ESP8266. The ESP8266 contains the crucial elements of a computer: CPU, RAM, networking (WiFi), and even a modern operating system and SDK. That makes it an excellent choice for the Internet of Things (IoT) projects of all kinds.

However, as a chip, the ESP8266 is also hard to access and use. You must solder wires, with the appropriate analog voltage, to its pins for the simplest tasks such as powering it on or sending a keystroke to the “computer” on the chip. You also have to program it in low-level machine instructions that can be interpreted by the chip hardware. This level of integration is not a problem using the ESP8266 as an embedded controller chip in mass-produced electronics. It is a huge burden for hobbyists, hackers, or students who want to experiment with it in their own IoT projects.

Specifications:

The NodeMCU is available in various package styles. Common to all the designs is the base ESP8266 core. Designs based on the architecture have maintained the standard 30-pin layout. Some designs use the more common narrow (0.9″) footprint, while others use a wide (1.1″) footprint – an important consideration to be aware of.

  • 80 to 160 MHz Clock Freq.
  • 128kB internal RAM
  • 4MB external flash
  • 802.11b/g/n Wi-Fi transceiver
Operating Voltage5V
Flash Memory4Mb
Processor speed80-160MHz
RAM32K + 80K
GPIOs16
ADC1, 10-bit



Power Requirement

  • Operating Voltage: 2.5V to 3.6V
  • On-board 3.3V 600mA regulator
  • 80mA Operating Current
  • 20 µA during Sleep Mode

PACKAGE CONTENTS

1×NodeMCU ESP8266 Development Board

2 reviews for NodeMCU CP2102 Board ESP8266

  1. urooj (verified owner)

  2. A G Suresh Babu (verified owner)

    I am not able to install the driver for this board. Send mail to replace the board with CH340 version. Never replied. Very bad experience.

Only logged in customers who have purchased this product may leave a review.
