KY-002 Vibration Switch Module

55.00 (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist

Description

The KY-002 Vibration Switch Module detects shaking and knocking. When the module is moved, a spring mechanism will close the circuit sending a short high signal.

It can be used with a variety of microcontrollers like Arduino, ESP32, Raspberry Pi and others.

KY-002 SPECIFICATIONS

This module consists of a conductive spring, a 10k resistor, and 3 male header pins. Knocking or shaking the module will cause the spring to momentarily close the circuit.

Operating Voltage5V
Board Dimensions18.5mm x 15mm [0.728in x 0.591in]

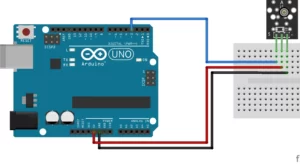

CONNECTION DIAGRAM

Connect the module signal pin (S) to pin 3 on the Arduino.

Then connect the module’s power pin (middle) and ground (-) to +5V and GND on the Arduino respectively.

Arduino KY 002 Keyes Vibration switch module connection diagram e1668322882263

KY-002 ARDUINO CODE

The following Arduino sketch produces a shock flasher. The LED on Arduino pin 13 will flash when the KY-002 is knocked or shaked. Pin 3 receives the signal from the module.

int Led = 13;

define the LED Pin int shock = 3

define the sensor Pin int val;

 define a numeric variable val void setup ()

{ pinMode (Led, OUTPUT);

 LED pin as output pinMode (shock, INPUT);

 input from KY-002 sensor

}

void loop ()

{ val = digitalRead (shock);

 read the value from KY-002 if (val == HIGH )

{

when sensor detects shock, LED flashes digitalWrite(Led, LOW);

} else

{

digitalWrite (Led, HIGH);

}

}
