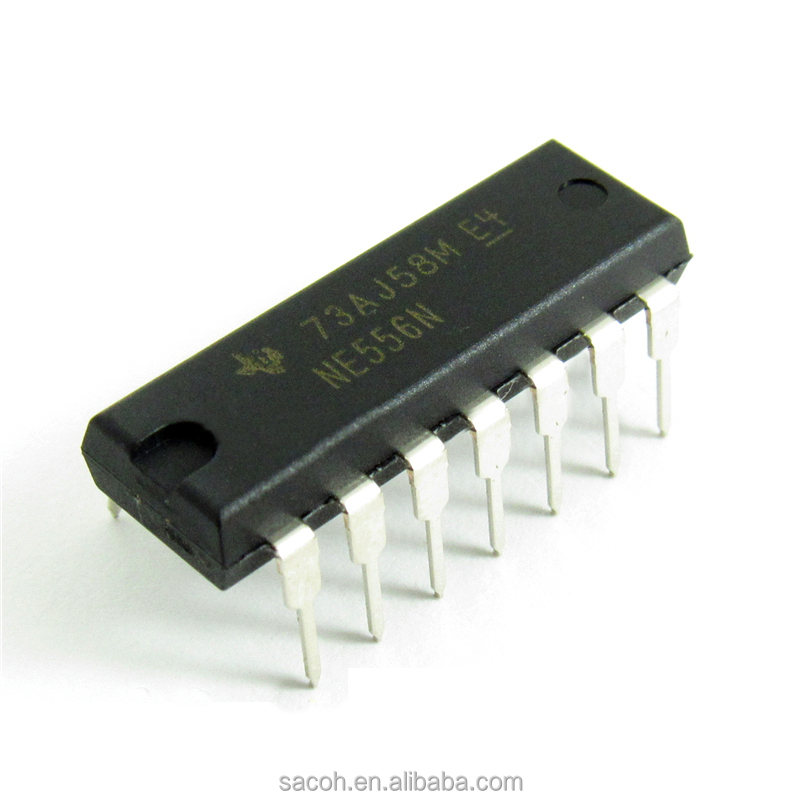

NE556N IC – Dual Timer IC

24.00 (inc. GST)

In stock

Quantity based pricing

Quantity Discount (%) Price
1 - 10 24.00
11 - 50 16.67 % 20.00
51+ 33.33 % 16.00
  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  • Low turn-off time
  •  Maximum operating frequency greater than 500 kHz
  •  Timing from microseconds to hours
  •  Operates in both astable and monostable modes
  • Output can source or sink up to 200 mA
  •  Adjustable duty cycle
  •  TTL compatible
  •  Temperature stability of 0.005% per °C

NE555 | NE556 | NE 556 | timer ic

SKU: RY-NE556 Category:

Description

The NE556N IC, SA556 and SE556 dual monolithic timing circuits are highly stable controllers capable of producing accurate time delays or oscillation. In the time delay mode of operation, the time is precisely controlled by one external resistor and capacitor. For a stable operation as an oscillator, the free running frequency and the duty cycle are both accurately controlled with two external resistors and one capacitor. The circuits may be triggered and reset on falling waveforms, and the output structure can source or sink up to 200 mA.

Features/Specs:

  •  Low turn-off time
  •  Maximum operating frequency greater than 500 kHz
  •  Timing from microseconds to hours
  •  Operates in both astable and monostable modes
  • Output can source or sink up to 200 mA
  •  Adjustable duty cycle
  •  TTL compatible
  •  Temperature stability of 0.005% per °C



Note: Product Images are shown for illustrative purposes only and may differ from the actual product.
