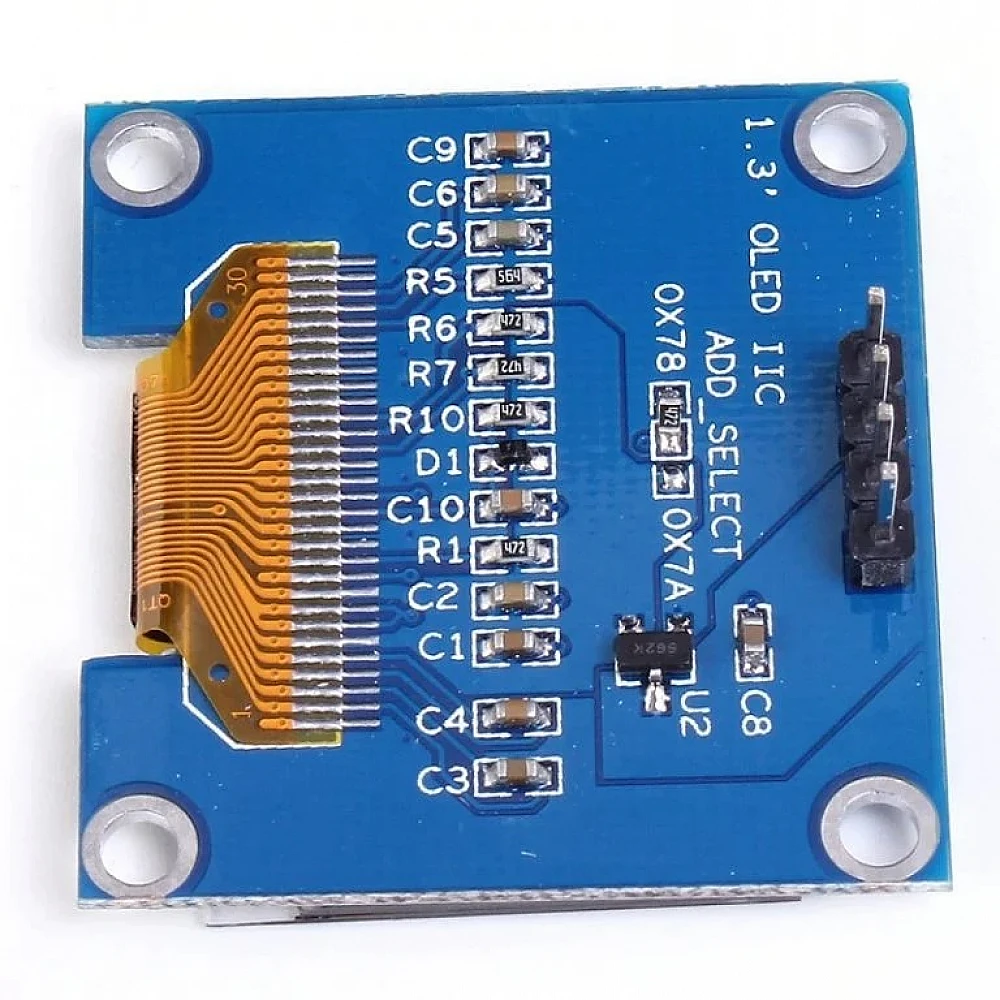

OLED 4pin 128×64 Display Module 1.3 Inch White Color

299.00 (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  • Display Size: 1.3 inch
  • Text Color: White
  • Resolution: 128×64
  • Driver IC: SH1106
  • Input Voltage: 3.3V/5V
  • Pins:
  • GND: (Ground)
  • VCC: (Power)
  • SCL: (Clock)
  • SDA: (Data Cable)
SKU: RY1227 Category: Tag:

Description

.3 inch OLED display module with 128×64 resolution.
The emissive electroluminescent layer is a film of organic compound that emits light in response to an electric current.
Working without backlight, the OLED display module could give out light by itself.
The OLED screen can achieve a higher contrast ratio in low ambient light condition.
Small dimension, suitable for MP3, function cellphone, smart watch, and smart health device.

This 1.3″ I2C OLED Display is an OLED monochrome 128×64 dot matrix display module with I2C Interface. It is perfect when you need an ultra-small display. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3.3V-5V microcontroller, such as Arduino.

OLED 1.3 inch is a monochrome graphic display module with a built-in 1.3 inch, 128X64 high-resolution display. OLED 1.3 inch is in a position to figure despite the absence of backlight. In a dark environment, contrast of OLED display is above LCD display. This device is I^2C or SPI compatible. Due to its capability in displaying, it’s often utilized in various application for instances, smart watch, MP3, function cellphone, portable health device and lots of others.
The 1.3 Inch 128×64 OLED monitor Module produces blue text on black background with excellent contrast when furnished with DC 2.8V supply. The OLED Display Modules also offers a really wide viewing angle of about greater than 160°.
OLED’s are the longer term of displays, as they possess a number of the best advantages over both conventional display technologies of LCD’s and LED‘s.
The most attractive thing about using the OLED displays is that they are doing not need a back-light like conventional LCD/LED screens. The organic material itself features a property referred to as Electroluminescence (EL), which causes the fabric to “glow” when stimulated by a current or an electrical field. Best energy saving displays ever!!!
This 1.3 Inch 128×64 OLED Display Screen Module offers 128×64 pixel resolution. They are featuring much less thickness than LCD displays with good brightness and also produce better and true colors.
This OLED Display Module is extremely compact and can add an excellent ever interface experience to your Arduino project. The connection of this display with Arduino is made through SPI interface.
OLEDs basic structure consists of organic materials positioned between the cathode and therefore the anode, which consists of electrical conductive transparent Indium Tin Oxide (ITO). The organic materials compose a multi-layered thin film, which incorporates the opening Transporting Layer (HTL), Emission Layer (EML) and therefore the Electron Transporting Layer (ETL). By applying the acceptable electric voltage, holes and electrons are injected into the EML from the anode and therefore the cathode, respectively. The holes and electrons combine inside the EML to make excitons, after which electro luminescence occurs. The transfer material, emission layer material and selection of electrode are the key factors that determine the standard of OLED components.
The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption.
OLED display, no need backlight, self-illumination, the display performance is best than the normal LCD display, also lower consumption. I2C interface, requires only two signal pin. It Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32).
The 1.3 Inch 128×64 OLED monitor Module produces blue text on black background with excellent contrast when furnished with DC 2.8V supply. The OLED Display Modules also offers a really wide viewing angle of about greater than 160°.

PACKAGE INCLUDES:

1 x 1.3 Inch I2C/IIC WHITE OLED Display Module 4pin
