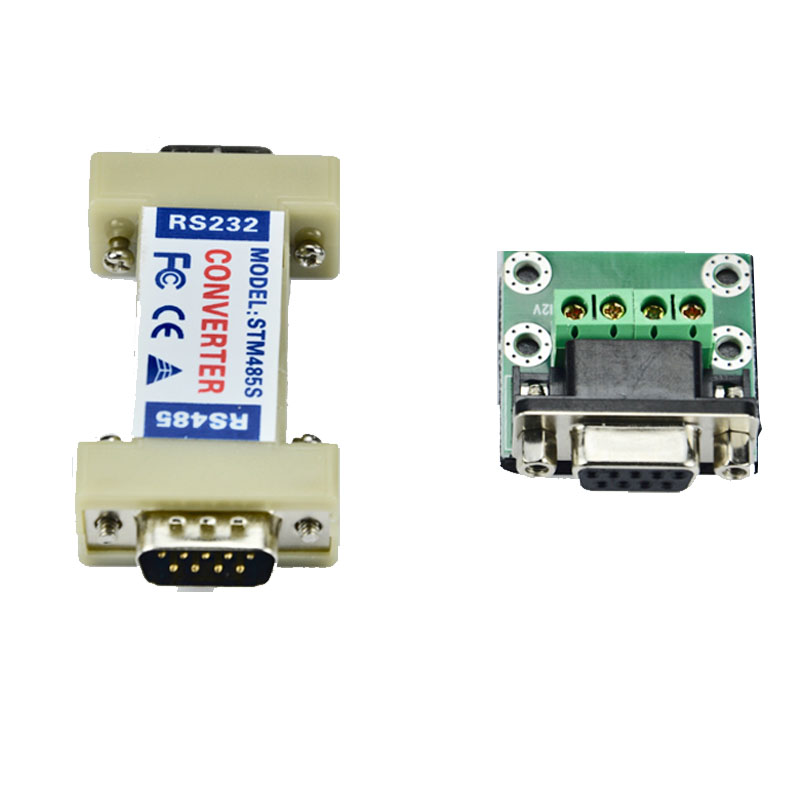

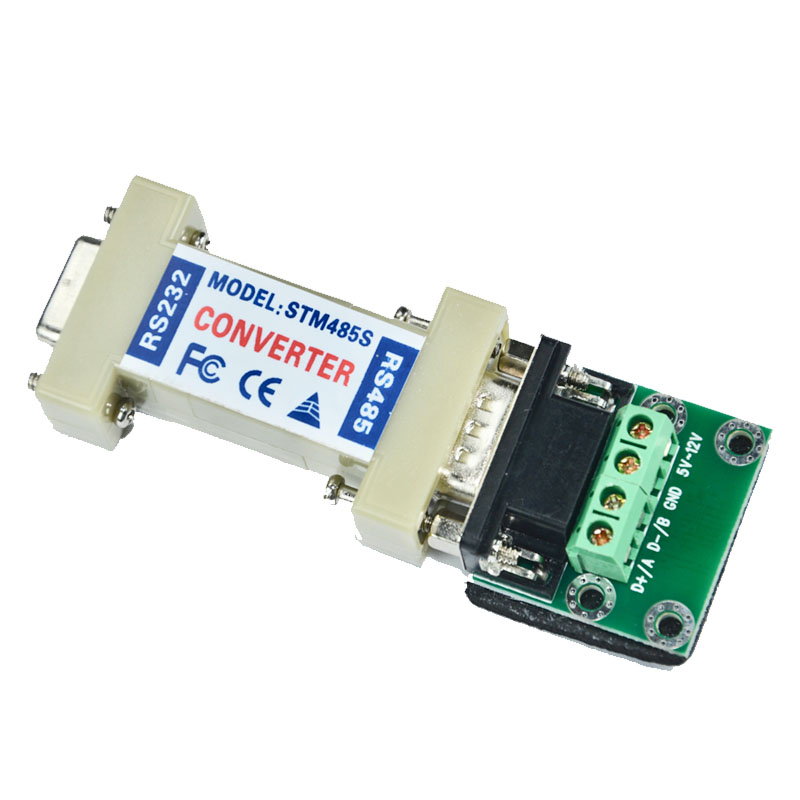

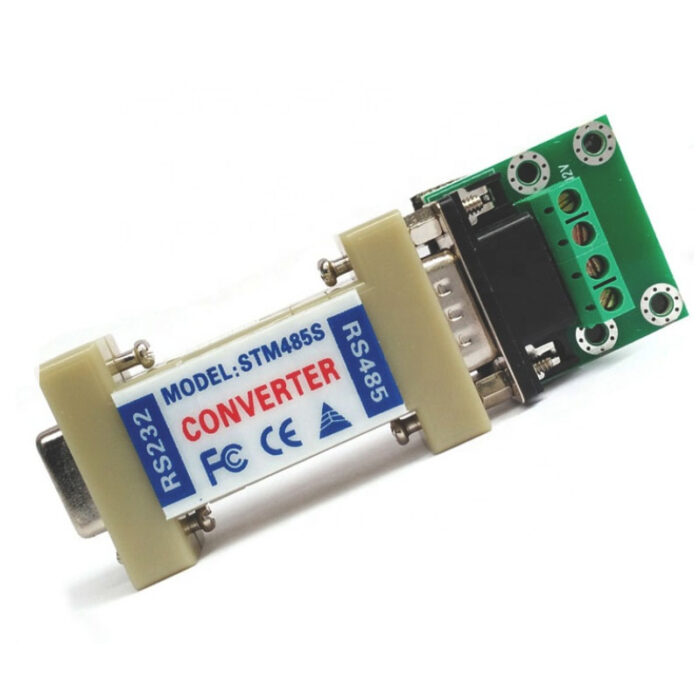

RS232 To RS485 Serial Converter Adapter With Terminal Board

Original price was: ₹359.00.Current price is: ₹349.00. (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  • Automatically process control, no need to reset your machine and very convenient to install.
  • DB9 female interface on the RS232 end and DB9 male interface on the RS485 end with connection terminal board.
  • Transmission distance of the RS485 end is about max. 1200m, but the RS232 end is about max. 5m.
  • Size : 3.4″ x 1.4″ x 0.7″ approx
  • Transmission rate about 300-115200bps.
  • Working mode: asynchronous, half-duplex, differential transmission

Description

RS232 To RS485 Serial Converter Adapter With Terminal Board is best device to carry through remote digital communication between computers with various standard series interfaces converter facilities or intelligent instruments, it needs inter exchange of standard series interface converter of compatible RS-232C and RS-485/422 standard is able to convert mono-end RS-232 signal to balance difference RS-485/422 signal and extend the communication distance to 1.2km. No external power but adopts a particular

RS-232 charge pump to drive the system, and gains electricity without initializing the RS-232 series interface.

An internal zero delay auto transceiver and particular I/O circuit automatically control the data stream direction in stead of an handshake signal (for example? RTS,DTR etc).There by in guarantees the function under RS-485/422 without changing the program compiled under RS-232 Full-duplex mode and assures the adaptation to current operation software and interface hardware.

The transmission rate of 300-115.2kbps. Is capable of applying between host computers, host computer and is extensions or external equipment and forms point-to-point or point-to-multipoint remote and multi-communication network, It implements multi-machine response communication and commonly used in systems of industrial automation control all-one-card. Door safe, car parking, ATM, bus charge, eatery sell out, staff attendance management, and toll highway etc.

Features:

  • Compatible with EIA/TIA RS-232C & RS485 standard.
  • Interface RS232 side: DB9 female connector.
  • Interface RS485 side: DB9 male connector with the terminal board.
  • Working mode: asynchronous, half-duplex, differential transmission.
  • Transmission media: double wire or Shielding Double Line.
  • Transmission rate: 300 – 115200bps, which the RS485 Communication Converter is capable of applying between host computers, host computer, and its external equipment and forms point to point, point to the multi-point network.

Package Includes:

1 x RS232 To RS485 Serial Converter Adapter With Terminal Board
