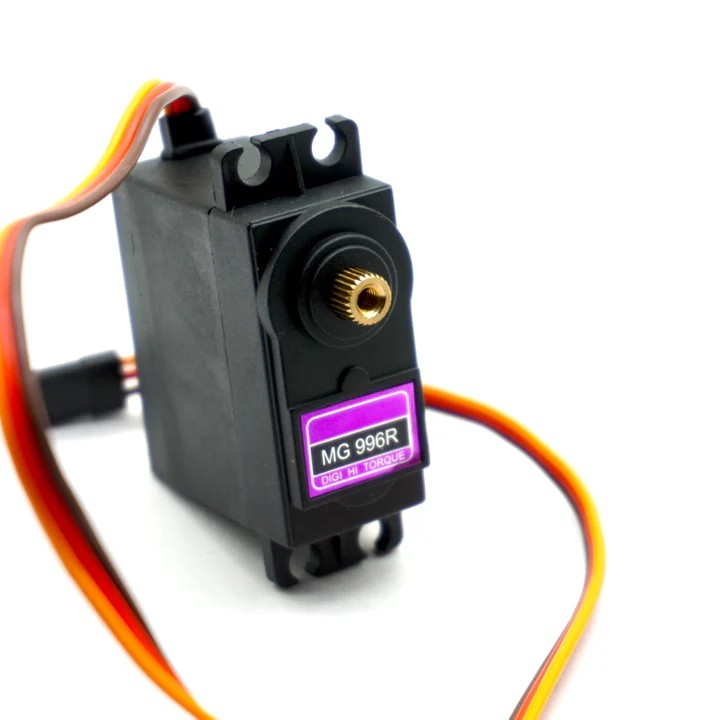

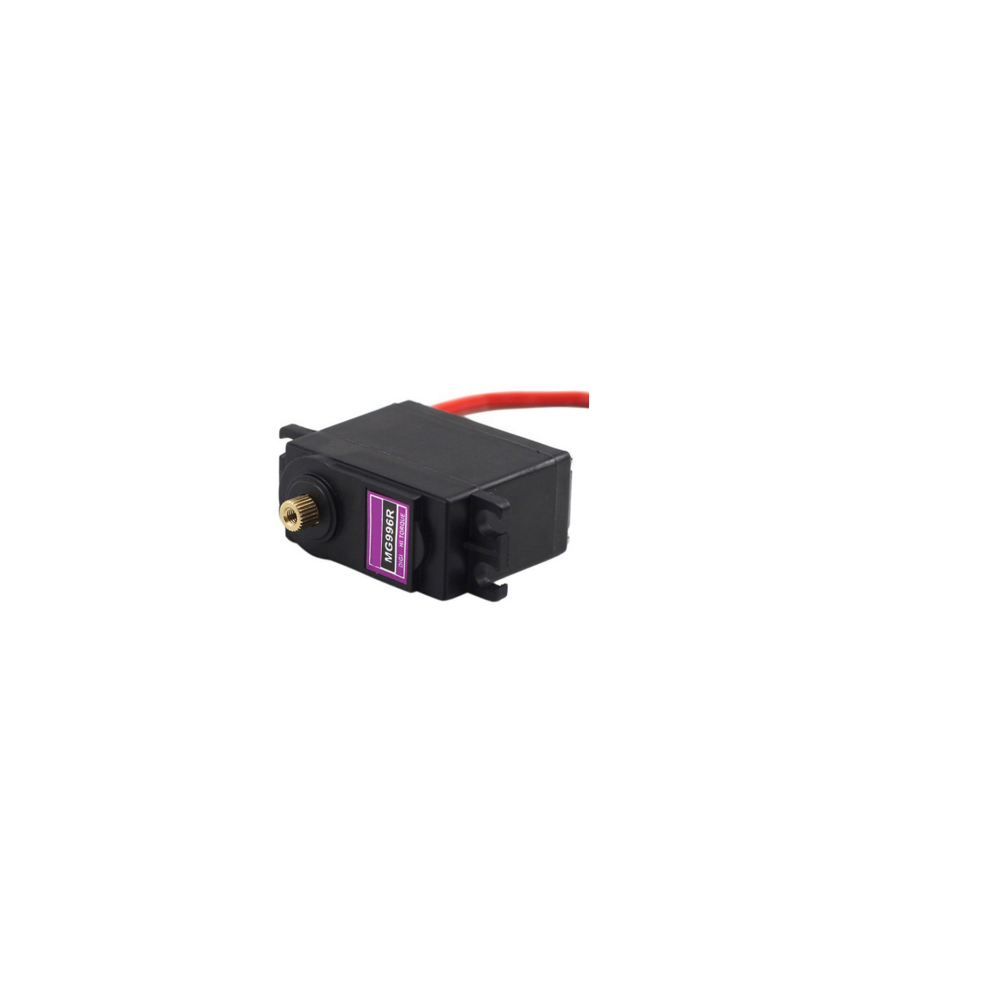

Tower Pro MG996R Digital Metal Gear High Torque Servo Motor (180 Degree Rotation)

Tower Pro MG996R Digital Metal Gear High Torque Servo Motor (180 Degree Rotation) - Image 2

Click to enlarge

Tower Pro MG996R Digital Metal Gear High Torque Servo Motor (180 Degree Rotation)

₹349.00 (inc. GST)

Weight: 55g
Dimension: 40.7×19.7×42.9mm
Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6.0v)
Operating speed: 0.19sec/60degree (4.8v); 0.15sec/60degree (6.0v)
Operating voltage: 4.8 ~ 6.6V
Gear Type: Metal gear
Dead band width: 1us

16 Items sold in last

Add Products worth ₹1000.00 to cart and get free shipping!

In stock

Add to wishlist

14 People watching this product now!

SKU: RY1451 Categories: Motors and Drivers, Motors

Description

Looking for Tower Motor? Tower Pro MG996R Digital Metal Gear High Torque Servo Motor (180 Degree Rotation) is available at Rytronics.in with fast shipping across India.

Tower Pro MG996R Digital Metal Gear High Torque Servo Motor

The Tower Pro MG996R Digital Metal Gear High Torque Servo Motor offers impressive performance with its metal gears and high 10kg stalling torque in a compact design. This updated version of the popular MG995 servo features enhanced shock resistance, a redesigned PCB, and a new IC control system, improving precision and reliability. The motor and gears have also been optimized to reduce dead band width and improve centering accuracy.
This servo comes equipped with a 30cm wire and a 3-pin ‘S’ type female header connector, making it compatible with a wide range of receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum, and Hitec. It provides an excellent solution for projects requiring precise and high-torque motion control.
Wire Configuration of Tower Pro MG996R Digital Metal Gear High Torque Servo Motor (180 Degree Rotation): –
RED – Positive
Brown – Negative
Orange – Signal (PWM)

Specifications of Tower Pro MG996R Digital Metal Gear High Torque Servo Motor (180 Degree Rotation):-

Weight: 55g
Dimension: 40.7×19.7×42.9mm
Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6.0v)
Operating speed: 0.19sec/60degree (4.8v); 0.15sec/60degree (6.0v)
Operating voltage: 4.8 ~ 6.6V
Gear Type: Metal gear.
Dead band width: 1us
Wire length: 30cm

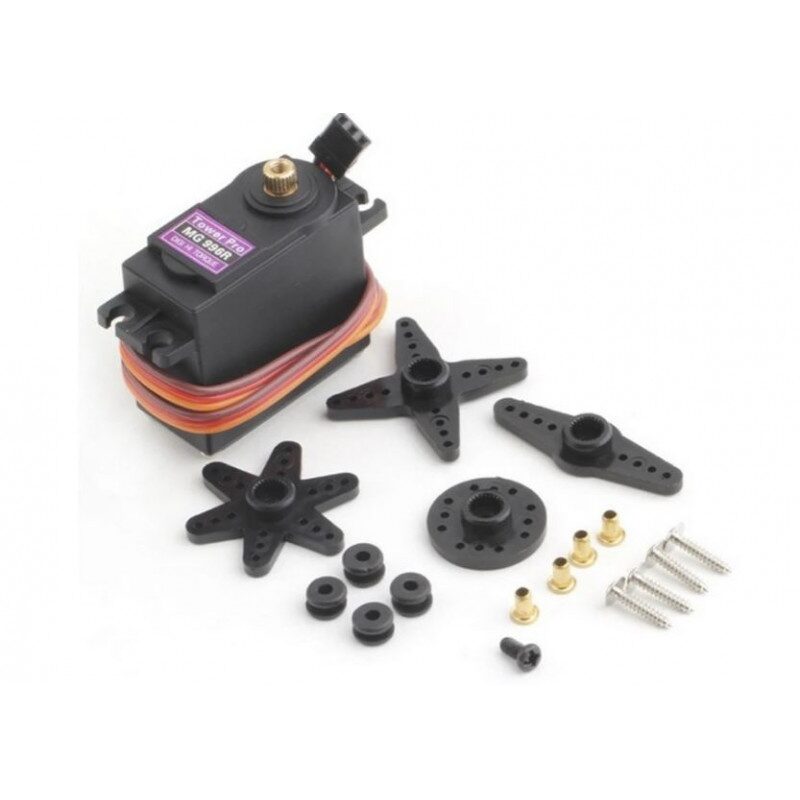

Package Includes:

1 x Tower Pro MG996R Digital Metal Gear High Torque Servo Motor (180 Degree Rotation)

Tower Pro MG996R Digital Metal Gear High Torque Servo Motor Overview

The Tower Pro MG996R is a high-torque digital servo with durable metal gears and a 180° rotation range, ideal for precise motion control. With upgraded PCB, IC control and enhanced shock resistance, it delivers reliable positioning in robotics and RC projects.

Key Features of Tower Pro MG996R Digital Metal Gear High Torque Servo Motor

High stall torque of 9.4 kg·cm at 4.8 V and 11 kg·cm at 6.0 V for heavy-load applications
Fast digital response: 0.19 sec/60° at 4.8 V and 0.15 sec/60° at 6.0 V
Precision metal gear train with 1 µs deadband width for superior centering
Compact form factor (40.7×19.7×42.9 mm) and lightweight (55 g)
Wide operating voltage range of 4.8 – 6.6 V for flexible power setups
Comes with 32 cm wire and 3-pin “S” type female header for easy integration
Genuine product with fast shipping across India from Rytronics

Applications and Use Cases

Steering and throttle control in RC cars, boats and planes
Robotic arms and grippers requiring precise positioning
Pan-tilt camera gimbals for photography and surveillance
Animatronic figures and model automation projects
Servo-driven valves or control surfaces in small UAVs
DIY mechatronics experiments and educational kits

How to Use Tower Pro MG996R Digital Metal Gear High Torque Servo Motor

Connect the three-wire cable (signal, power, ground) to your controller or microcontroller’s PWM output and a 4.8 – 6.6 V power source. Initialize the servo library or PWM settings, calibrate end-points for 0° and 180°, then send position commands within that range. Ensure adequate supply current and secure the servo horn to your mechanical linkage.

Why Buy from Rytronics?

Genuine Products: All items sourced from authorized distributors
Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
Free Shipping: Free delivery on qualifying orders
COD Available: Cash on Delivery, UPI, cards, net banking
Technical Support: Expert help for setup and troubleshooting
Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What stall torque does the MG996R deliver?

The MG996R provides up to 9.4 kg·cm at 4.8 V and 11 kg·cm at 6.0 V, making it suitable for demanding servo applications.

What is the rotation range and speed?

This servo offers a 180° rotation range with an operating speed of 0.19 sec per 60° at 4.8 V and 0.15 sec per 60° at 6.0 V.

How does the deadband width affect performance?

With a narrow 1 µs deadband width, the MG996R reduces jitter and improves centering accuracy, crucial for precision motion control.
