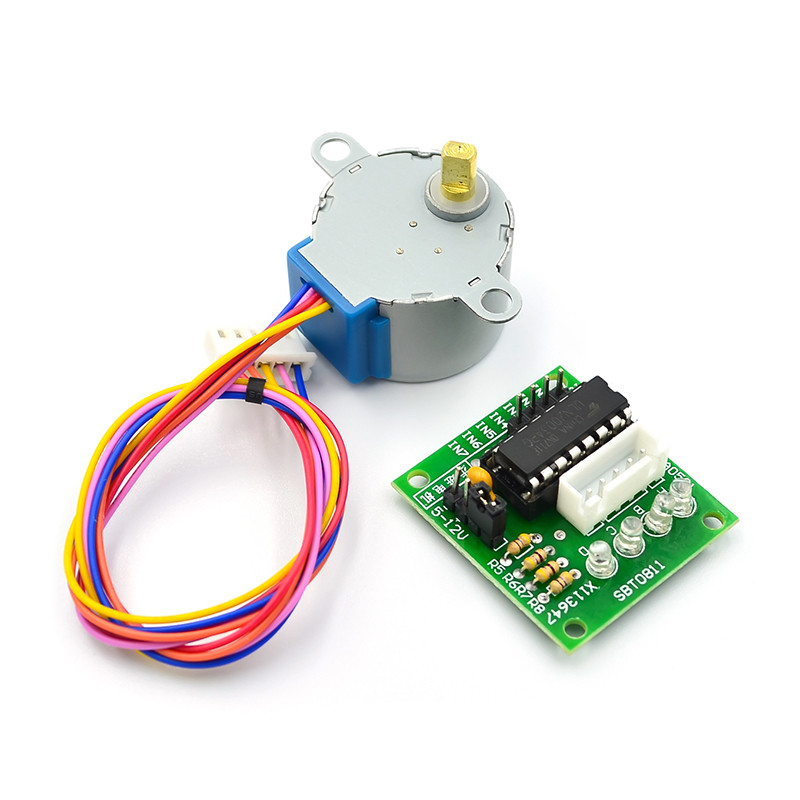

Stepper Motor 28BYJ-48 and ULN2003 Stepper Motor Driver

(1 customer review)

148.00 (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  • Voltage: 5V DC
  • Step Angle: 5.625° /64
  • Frequency: 100Hz
  • Self-positioning Torque: >34.3mN.m
  • Friction torque: 600-1200 gf.cm

Description

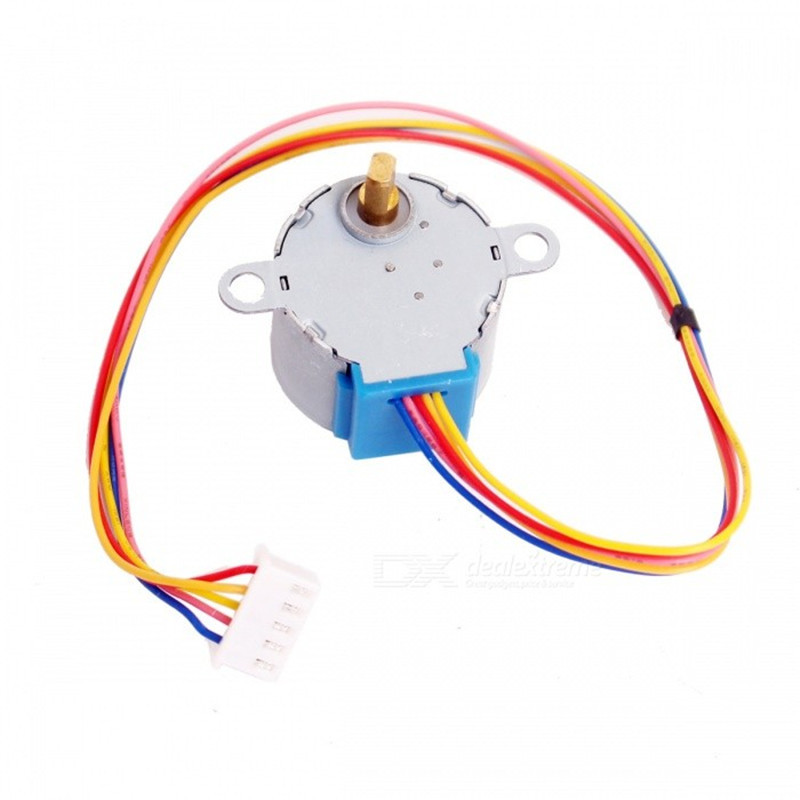

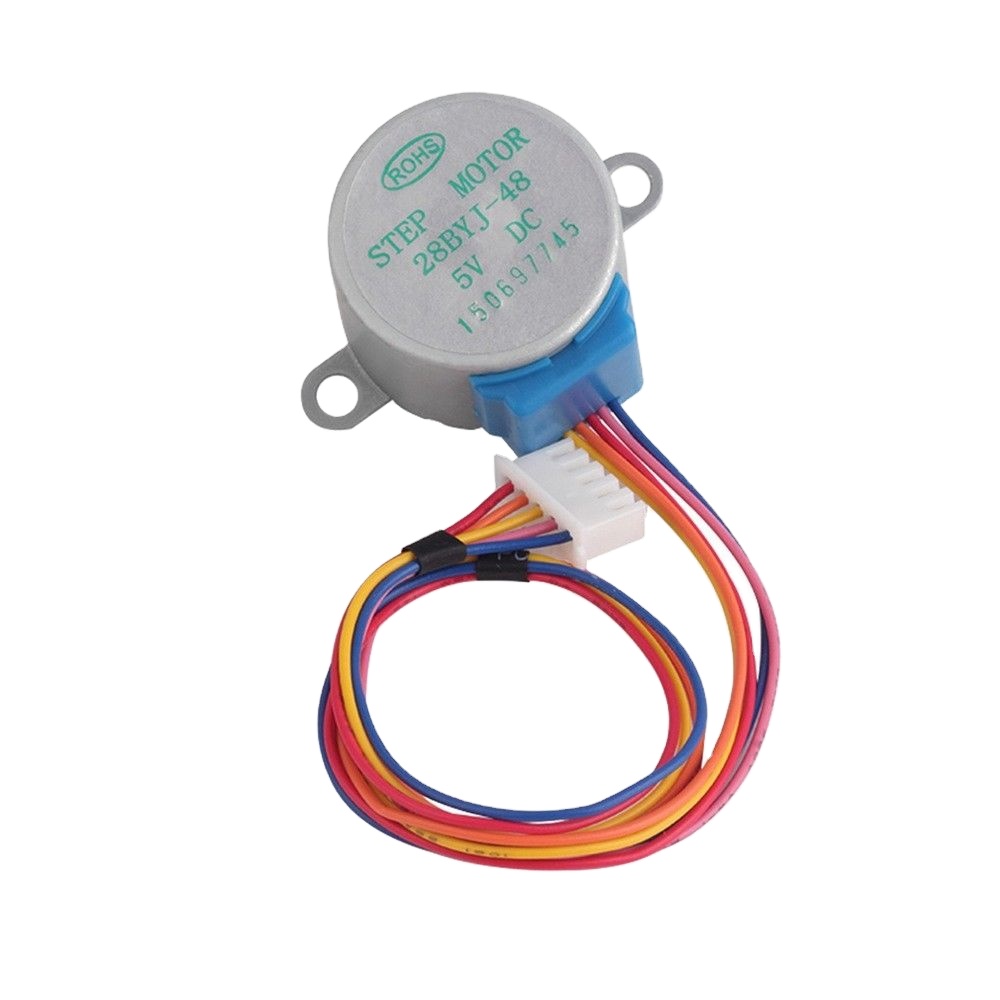

Stepper Motor 28BYJ-48 is a uni-polar 5V stepper motor that takes electrical signals as input and rotates by converting these input signals into the mechanical rotation. It has 4 stationary coils rated at +5V. These coils are known as a stator and make a ring around the rotor. It has a 1/64 reduction gear set and therefore moves in precise 512 steps per revolution. These motors are silent in comparison to other DC motors and servo motors. You can achieve positional control easily without needing extra circuitry and components.

Stepper Motor 28BYJ-48 specifications:

  • Voltage: 5V DC
  • Step Angle: 5.625° /64
  • Frequency: 100Hz
  • Self-positioning Torque: >34.3mN.m
  • Friction torque: 600-1200 gf.cm

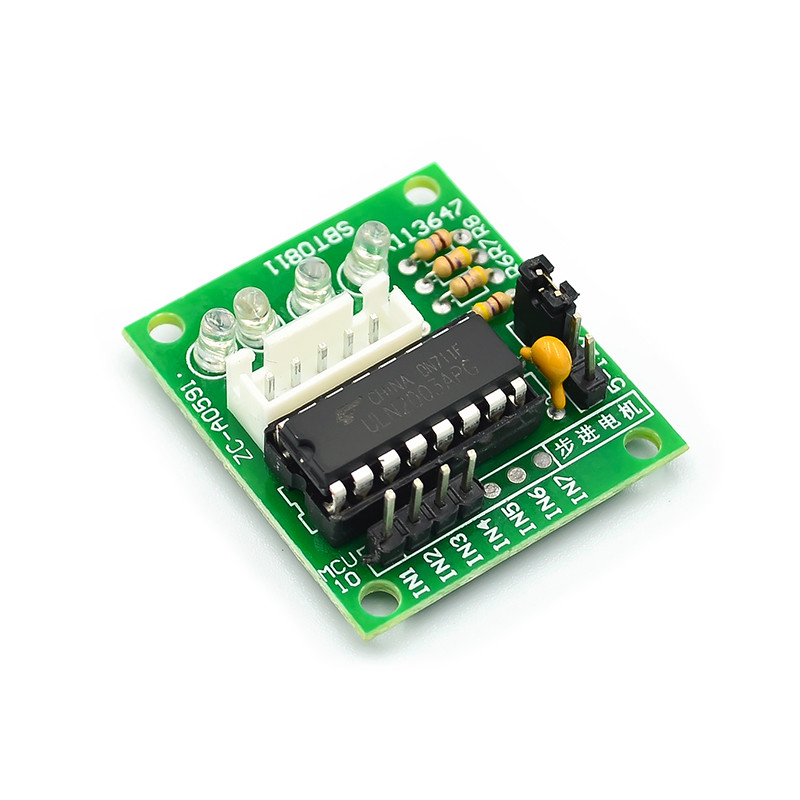

ULN2003 Stepper Motor Driver is small size and easy to use. It is based on ULN2003 driver chip to amplify the control signal from the Arduino or other development boards. This Ultra Lightweight and cheap option commonly used to run and control the small applications stepper motors.

It uses the ULN2003 DARLINGTON ARRAYS to drive the 4-phase 5-wire stepper motor (5v-12v).It’s easy to use Arduino or other development platform to drive the stepper motor by this diver board.

ULN2003 Stepper Motor Driver Specification:

  • Size: 42mmx30mm
  • Use ULN2003 driver chip, 500mA
  • A. B. C. D LED indicating the four phase stepper motor working condition.

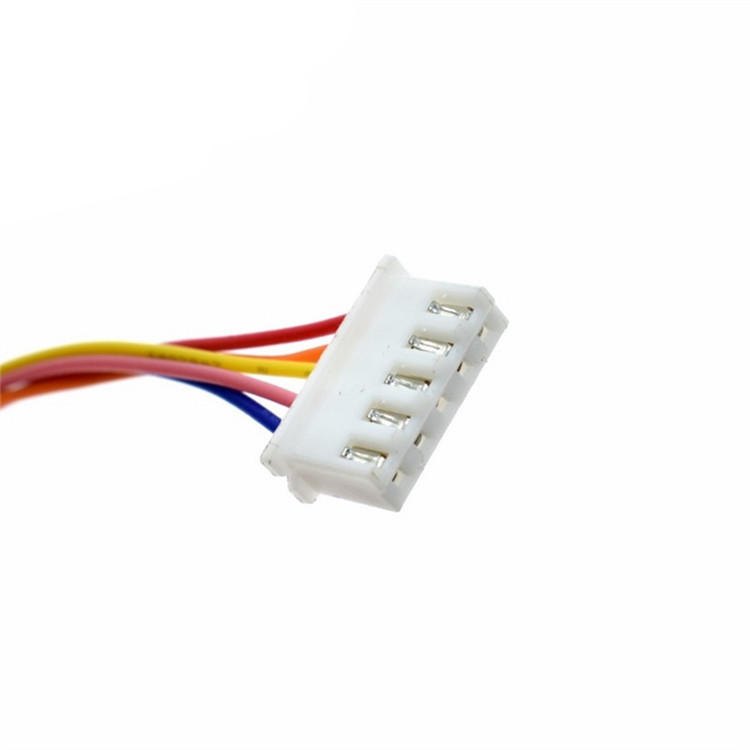

  • White jack is the four phase stepper motor standard jack.



Stepper Motor 28BYJ-48 5V Applications

  • They are widely used used in cameras for providing precise control and positioning.
  • As they have excellent of speed during rotation. hence it is used in robotics projects and applications related to automation.
  •  car side mirrors can also be controlled using these motors.
  • CCTV cameras and DVD/CD players are also their applications.



Package Includes :

1 x 28BYJ-48 Stepper Motor

1 x ULN2003 Stepper Motor Driver
