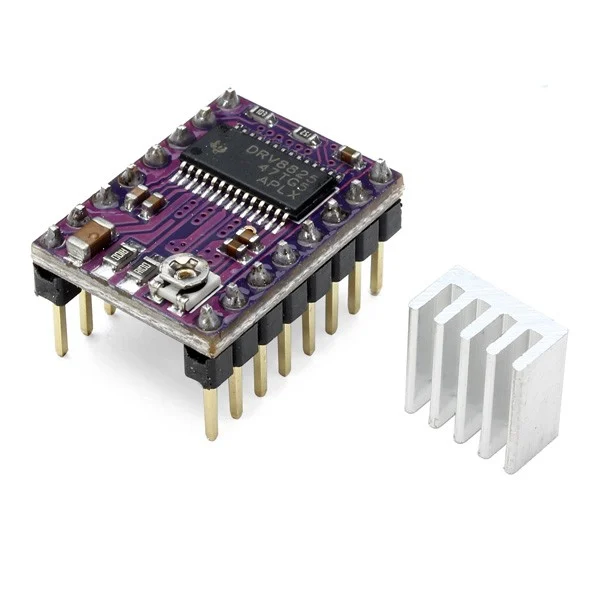

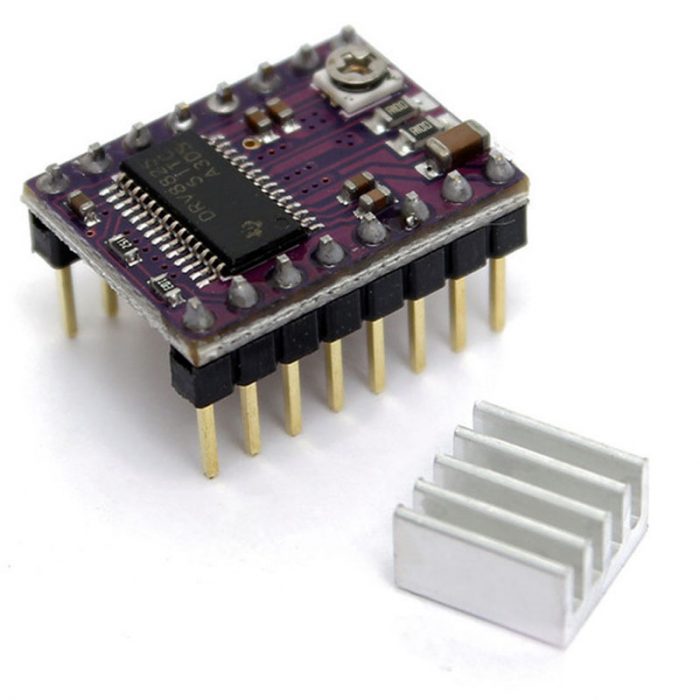

DRV8825 3D printer Motor Driver Module with Aluminum Heat Sink

199.00 (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  1. Supply Voltage: 8.2 – 42 VDC.
  2. Current Capacity : 2.2A max(24V).
  3. Continuous current per phase: 1.5 A.
  4. Minimum Logic voltage: 2.5V.
  5. Maximum Logic Voltage: 5V.
  6. Microstep resolutions: full, 1/2, 1/4, 1/8, 1/16, and 1/32.
  7. Dimensions : 15 x 20 mm.
  8. Weight: 4 gm.
SKU: RY1050 Categories: ,

Description

The DRV8825 Stepper Motor Driver with Aluminum Heat Sink is a breakout board for TI’s DRV8825 microstepping bipolar stepper motor driver.

The module has a pinout and interface that are nearly identical to those of the A4988 stepper motor driver carriers, so it can be used as a higher-performance drop-in replacement for those boards in many applications.

The DRV8825 features adjustable current limiting, overcurrent, and overtemperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).

Features :

  1. Microstep resolutions: full, 1/2, 1/4, 1/8, 1/16, and 1/32.
  2. Simple step and direction control interface
  3. Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
  4. Adjustable current control lets you set the maximum current output with a potentiometer. Hence lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates
  5. Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
  6. 45 V maximum supply voltage
  7. Built-in regulator (no external logic voltage supply needed)
  8. Can interface directly with 3.3 V and 5 V systems
  9. Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
  10. Short-to-ground and shorted-load protection
  11. 4-layer, 2 oz copper PCB for improved heat dissipation

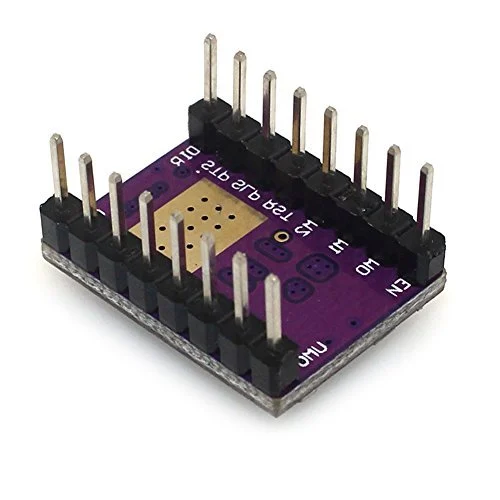

  12. Exposed solderable ground pad below the driver IC on the bottom of the PCB

Package Includes :

1 x DRV8825 Stepper Motor Driver with Aluminum Heat Sink- Good Quality.
