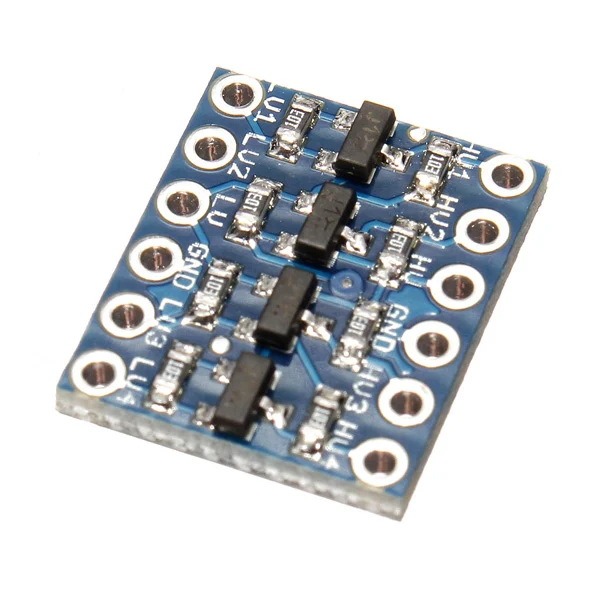

I2C 4 Channel 3.3V to 5V Bi-Directional Logic Level Converter

(1 customer review)

35.00 (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  1. Mutual transform between 5V TTL and 3.3V TTL
  2. Four channels of logic and high voltage low voltage logic can two-way transform
  3. Portable and lightness, with 2 rows 6 pin contact pins
  4. Level Converter- 4 ChannelCompatible with the bread plate, can be used directly put on the breadboard
  5. 4 Channel Module (great for I2C or SPI) and will work with all microcontrollers, Arduino, Raspberry Pi, Intel Edison, NXP Mbed
SKU: RY1021 Categories: ,

Description

This Level Converter- 4 Channel features four high speed bi-directional 4 channels, allowing for safe and easy communication between devices operating at different logic levels.

The logic level converter circuit convert signals as low as 1.8 V to as high as 5 V and vice versa, and its four channels are enough to support most common bidirectional and unidirectional digital interfaces, including IC, SPI, and asynchronous TTL serial.

If you have ever tried to connect a 3.3V device to a 5V system, you know what a challenge it can be? A bi-directional Level Converter- 4 Channel is a small device that safely steps down 5V signals to 3.3V AND steps up 3.3V to 5V at the same time. This level converter also works with 2.8V and 1.8V devices. What really separates this Logic level converter from our previous versions is that you can successful

How to use:

  1. High voltage (5V for example) to the HV pin
  2. Low voltage (3.3V for example) to LV
  3. Gound from the system to the GND pin.



Specifications and Features:

  1. Mutual transform between 5V TTL and 3.3V TTL
  2. Four channels of logic and high voltage low voltage logic can two-way transform
  3. Portable and lightness, with 2 rows 6 pin contact pins
  4. Level Converter- 4 ChannelCompatible with the bread plate, can be used directly put on the breadboard
  5. 4 Channel Module (great for I2C or SPI) and will work with all microcontrollers, Arduino, Raspberry Pi, Intel Edison, NXP Mbed

Additional information

Number of Channels4
Voltage on Lx Side1.8V-5V
Voltage on Hx Side2.8V-6V
Power2.8V 6V
Length (mm)16
Width (mm)13
Height (mm)3
Weight (gm)2

Package Includes:

1 x I2C 4 Channel 3.3V to 5V Bi-Directional Logic Level Converter

* Product Images are shown for illustrative purposes only and may differ from actual product.
