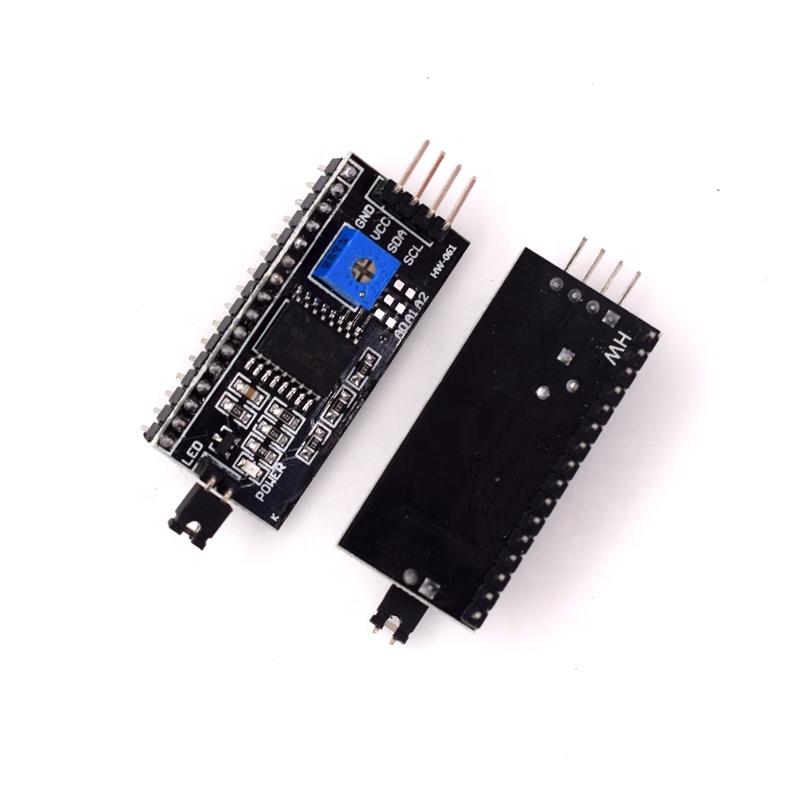

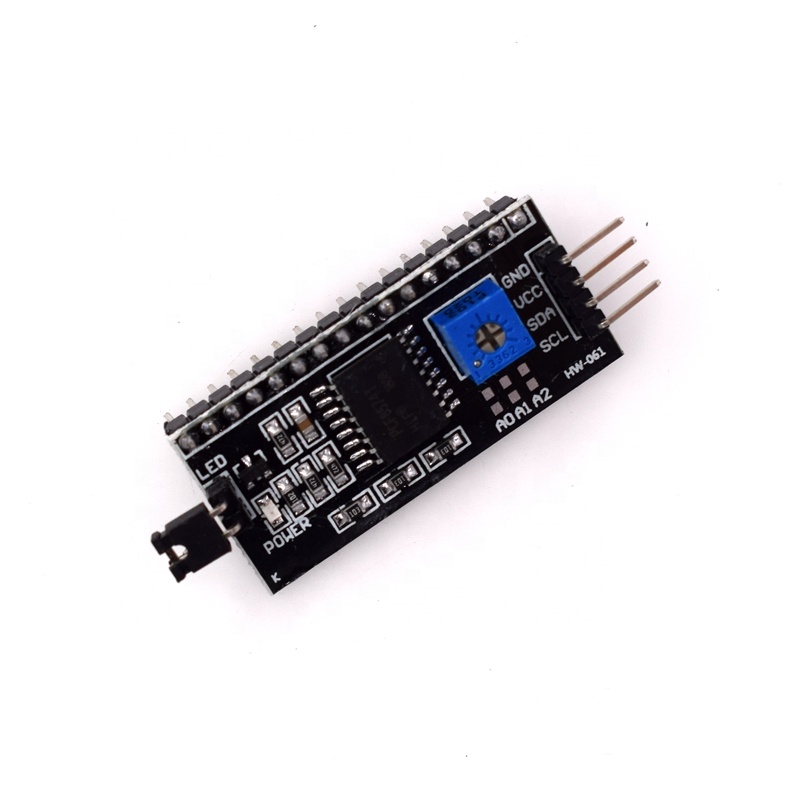

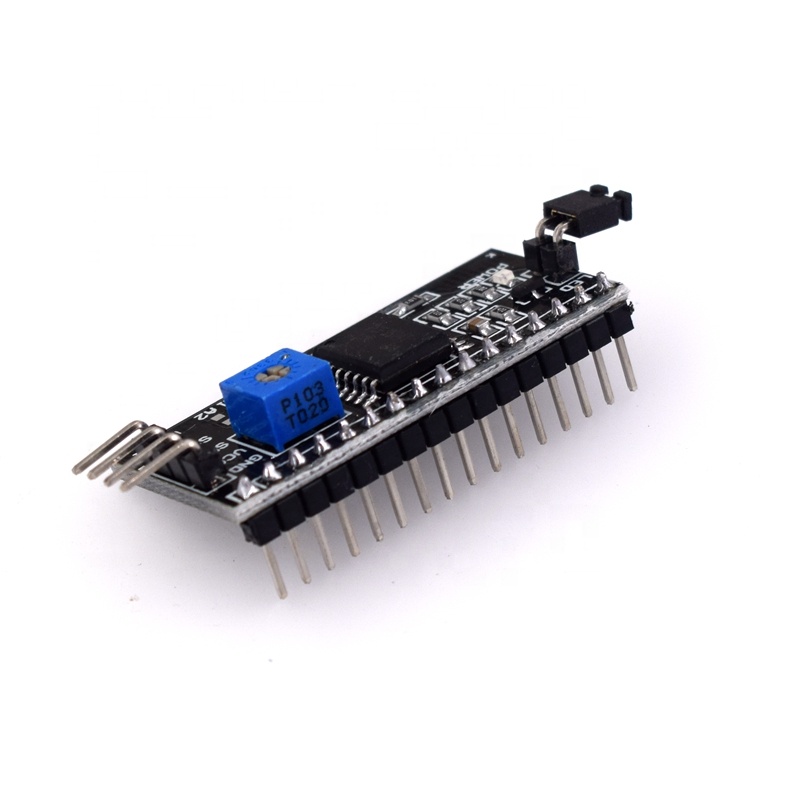

I2C Module for 16×2 (1602) Character LCD

(6 customer reviews)

89.00 (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  1. 5V power supply.
  2. Serial I2C control of LCD display using PCF8574.
  3. Backlight can be enabled or disabled via a jumper on the board.
  4. Contrast control via a potentiometer.
  5. Can have 8 modules on a single I2C bus (change address via solder jumpers)address, allowing.

Description

I2C Module for 16×2 (1602) Character LCD has a inbuilt PCF8574 I2C chip that converts I2C serial data to parallel data for the LCD display.

These modules are currently supplied with a default I2C address of either 0x27 or 0x3F. To determine which version you have check the black I2C adaptor board on the underside of the module. If there a 3 sets of pads labelled A0, A1, & A2 then the default address will be 0x3F. If there are no pads the default address will be 0x27.

Specifications and Features:

  1. 5V power supply.
  2. Serial I2C control of LCD display using PCF8574.
  3. Backlight can be enabled or disabled via a jumper on the board.
  4. Contrast control via a potentiometer.
  5. Can have 8 modules on a single I2C bus (change address via solder jumpers)address, allowing.
  6. Size :41.6 x 19.2 mm.

Package Includes:

1 x I2C Module for 16×2 (1602) Character LCD
