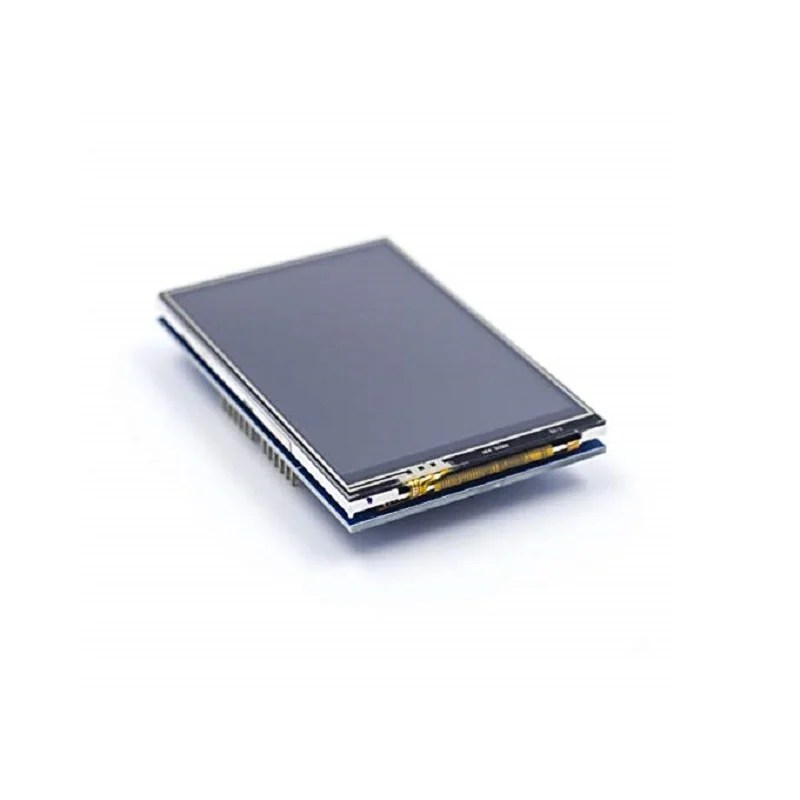

3.5″ inch ILI9486 TFT Shield LCD Module 480×320 for Arduino

Original price was: ₹1546.00.Current price is: ₹945.00. (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  • 3.5″ diagonal LCD TFT display, with bright 4 white-LED backlights, default state: on
  • It can control the backlight to connect the transistor to a digital pin
  • 480×320 Pixels, with colorful and 18-bit, 262,000 different kinds of shade
  • 8-bit digital interface, plus 4 control lines
SKU: RY1133 Categories: , ,

Description

3.5 inch TFT 480×320 Ultra HD LCD Screen Display for Arduino is big (3.5″ diagonal) bright and colorful! 480×320 pixels with individual RGB pixel control, this has way more resolution than a black and white 128×64 display, and double our 2.8″ TFT.

 This display has a controller built into it with RAM buffering so that almost no work is done by the microcontroller.

  • Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring
  • 480X320 resolution, clear display
  • Support 16-bit RGB 65K color display, display rich colors
  • 8-bit parallel bus, faster than serial SPI refresh
  • On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
  • Easy to expand the experiment with SD card slot
  • Provides an Arduino library with a rich sample program
  • Military-grade process standards, long-term stable work
  • Provide underlying driver technical support

Product Parameters

NameParameter
Display ColorRGB 65K color
Screen Size3.5(inch)
TypeTFT
Driver ICILI9486
Resolution480*320 (Pixel)
Module Interface8-bit parallel interface
Active Area73.44*48.96(mm)
Module PCB Size85.49*55.63(mm)
Operating Temperature-20℃~70℃
Storage Temperature-40℃~70℃
Operating Voltage5V/3.3V

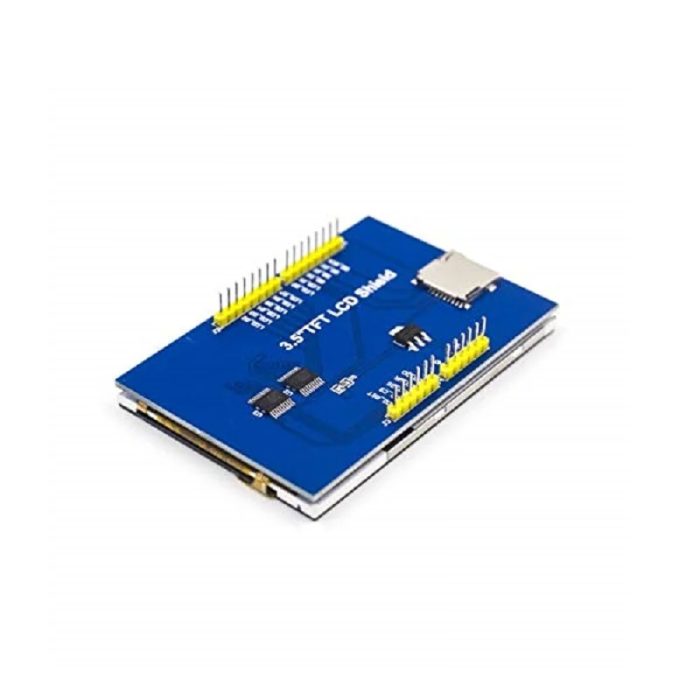

Interface Definition

NumberPin LabelPin Description
1LCD_RSTLCD bus reset signal, low level reset
2LCD_CSLCD bus chip select signal, low level enable
3LCD_RSLCD bus command / data selection signal,low level: command, high level: data
4LCD_WRLCD bus write signal
5LCD_RDLCD bus read signal
6GNDPower ground
75V5V power input
83V33.3V power input, this pin can be disconnected
9LCD_D0LCD 8-bit data Bit0
10LCD_D1LCD 8-bit data Bit1
11LCD_D2LCD 8-bit data Bit2
12LCD_D3LCD 8-bit data Bit3
13LCD_D4LCD 8-bit data Bit4
14LCD_D5LCD 8-bit data Bit5
15LCD_D6LCD 8-bit data Bit6
16LCD_D7LCD 8-bit data Bit7
17SD_SSSD card SPI bus chip select signal, low level enable
18SD_DISD card SPI bus MOSI signal
19SD_DOSD card SPI bus MISO signal
20SD_SCKSD card SPI bus clock signal
