This product is a 180 kHz fixed frequency PWM buck (step-down) DC/DC module, capable of driving a 5A load with high efficiency, low ripple, and excellent line and load regulation. The module with a voltage meter to display the input voltage and output voltage, and the voltage can be corrected through the button to improve the accuracy of the voltmeter.

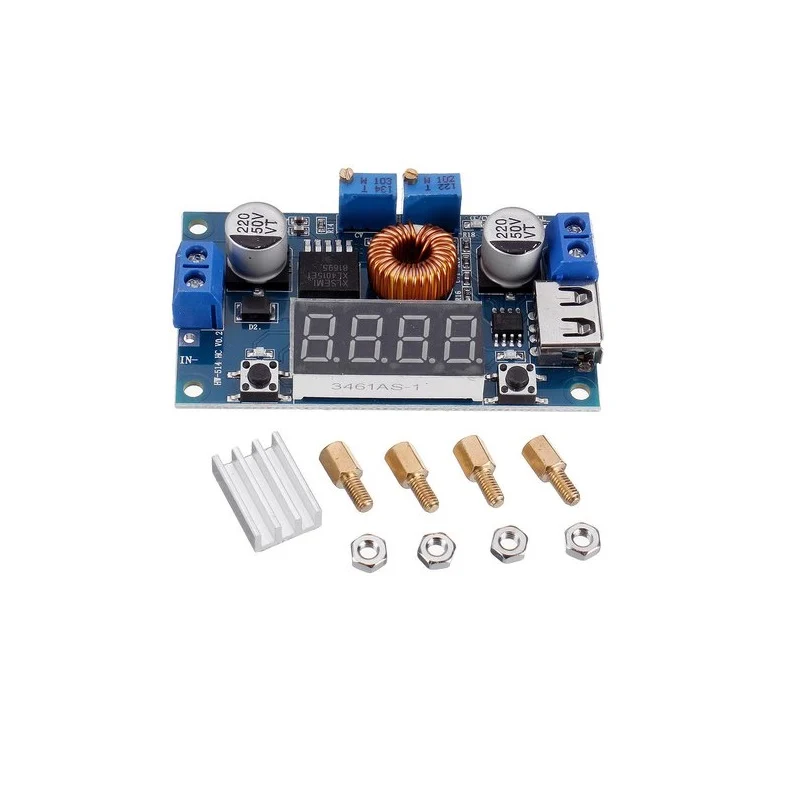

DC-DC XL4015 Adjustable Stepdown Module 5A 75W with 4 Bits Digital Display Voltmeter

₹289.00 (inc. GST)

Out of stock

Input Supply Voltage (V) 5 – 38 DC
Output voltage (V) 1.25 ~ 36 (adjustable)
Output Current (A) max 5A
Output power (W) 75
Voltmeter error Â± 0.05V
Conversion efficiency 96%

SKU: RY1218 Categories: Buck Converter, Voltage Regulator Modules Tag: Buck Converter

Add to Wishlist

Description

This product is a 180 kHz fixed frequency PWM buck (step-down) DC/DC module, capable of driving a 5A load with high efficiency, low ripple, and excellent line and load regulation. The module with a voltage meter to display the input voltage and output voltage, and the voltage can be corrected through the button to improve the accuracy of the voltmeter.

Voltmeter calibration method :

(1) Output voltage calibration steps

Step 1, adjust the right button so that the “OUT” LED lighted, the voltmeter shows the value of output voltage; Press the right button for more than 2 seconds, release, voltmeter and “OUT” LED flashes in synchronization so that you enter the output voltage calibration mode.

Step 2, press the right button (normal speed), the voltage value is adding up a unit; Press the left button, minus a unit; Due to a unit is less than 0.1V, the minimum voltage display to 0.1V, so you need to continuously press 1-5 times to see the voltmeter change 0.1V, how many times voltmeter change 0.1V by pressing the key, depending on the current display voltage, the higher the voltage, the fewer the number of press.

Step 3, press the right button for more than 2 seconds, release, to exit the output voltage calibration mode. All parameters set to automatically power down to save.

(2) Input voltage calibration steps

Step 1, adjust the right button so that the “IN” LED lighted, the voltmeter shows the value of input voltage; press the right button for more than 2 seconds, release, voltmeter and “IN” LED flashes in synchronization so that you enter the input voltage calibration mode.

Steps 2 and 3, consistent with the output voltage calibration method.

Features:

Power indicator: Yes.
Short circuit protection: Yes (limit current 8A).
Over-temperature protection: Yes (shutdown output automatically after over temperature).
Input Reverse Polarity Protection: None (cascade high current diode if required).
Wiring: IN+/- Input, OUT+/- Output.
Built-in current limit function.

Package Includes:

1 x DC-DC XL4015 Adjustable Step-down Module 5A 75W with 4 Bits Digital Display Voltmeter
