Sale!

DC5V Humidifier USB Spray Module DIY Incubation Experiment Equipm 108KHz(mist maker)

(3 customer reviews)

Original price was: ₹209.00.Current price is: ₹159.00. (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  1. Work Voltage:DC 4.5V~5.0V
  2. Work Power:2W
  3. Work Frequency:108KHz(+/-3KHz)
  4. Come with a driver
  5. Power-ON trigger work
  6. 108KHz high frequency oscillator

Description

This DC Ultrasonic Humidifiers Power Circuit Board with Atomizing Chip Moisture Film Humidification atomization machine consists of an atomization plate tablet with a diameter of 20mm. This Ultrasonic Humidifier Piezoelectric Transmitter module works on the principle of cavitation produced by sound waves. Just provide the DC 3V to 5V power supply it will turn into a mini ultrasonic atomizer. As sound waves contain compression and rarefaction. Due to extremely rapid movement, water droplets can no longer sustain their liquid state and get converted into vapor immediately. This vibration is produced by a piezoelectric filament. Tags, USB Humidifier Atomization Driver Board PCB Circuit Board 5V Spray Incubation, Tags, OEM/ODM Available Mini Humidifier USB spray module humidifier pcb circuit board for DIY kit Incubation Experiment Equipment, USB Humidifier Atomization Driver Board PCB Circuit Board 5V Spray Incubation, 5V DIY Ultrasonic Piezoelectric Humidifier Moisture Atomizing Chip Mist maker circuit board.

Features

  • Come with a driver
  • Power-ON trigger work
  • 108KHz high-frequency oscillator
  • Micron level aperture
  • The glazed surface of the atomized sheet

Features/Specs:

  • Product Name: 108KHz 20mm USB Humidifier
  • Work Voltage: DC 4.5V~5.0V
  • Work Power:2W
  • Work Frequency:108KHz(+/-3KHz)
  • Power Type: Female USB Socket
  • Diameter without rubber ring:16mm
  • Diameter with rubber ring:20mm
  • Spray Diameter:5um
  • Spray Hole:740 holes
  • Spray speed:50ml/h
  • Work Temperature:0℃ ~ 85℃
  • Work Humidity:10%~90%RH
  • Driver Size:35*19*15mm
  • Length: 35 mm
  • Width: 19 mm
  • Height: 15 mm
  • Weight: 10 gm

Application:

  • Humidifier | mist maker
  • Beauty care for facial massager
  • Medical liquid atomizing
  • Equipment

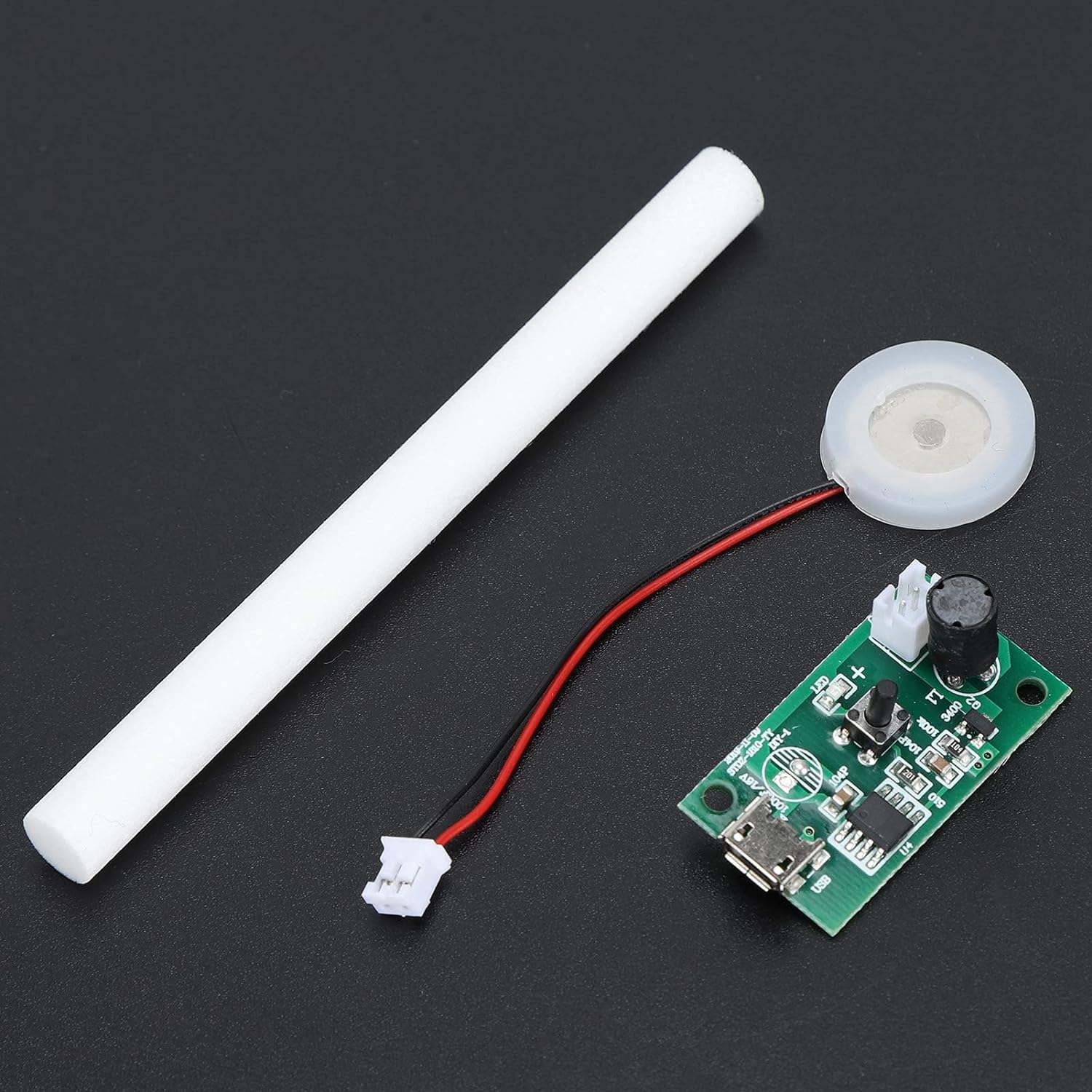

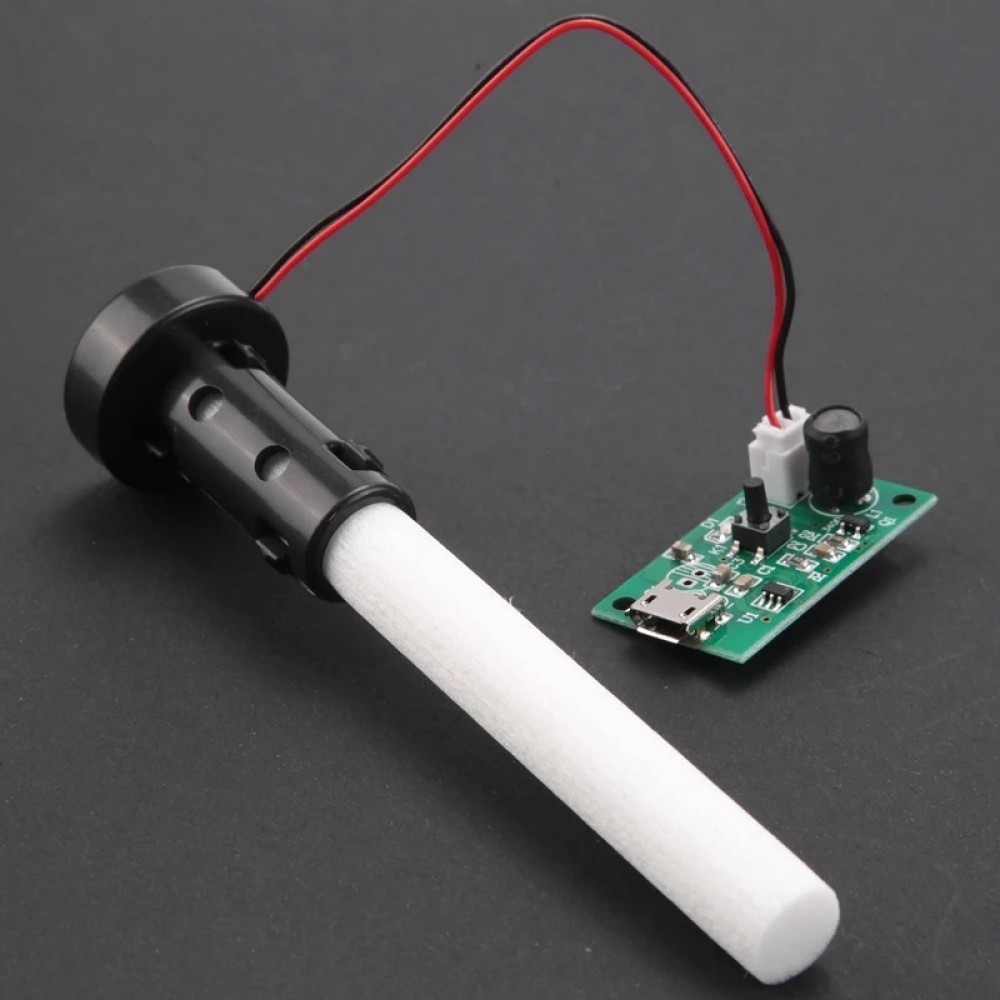

Package Includes:

  • 1pc x Humidifier Driver Bord
  • 1pc x 16mm Atomizer Plate
  • 1pc x Cotton Stick Stand
  • 1pc x Cotton Stick
