New

ESP32-C3-Super-Mini-Development-Board-UnSoldered-Headers

ESP32-C3 Super Mini Development Board Soldered Headers - Image 2

Click to enlarge

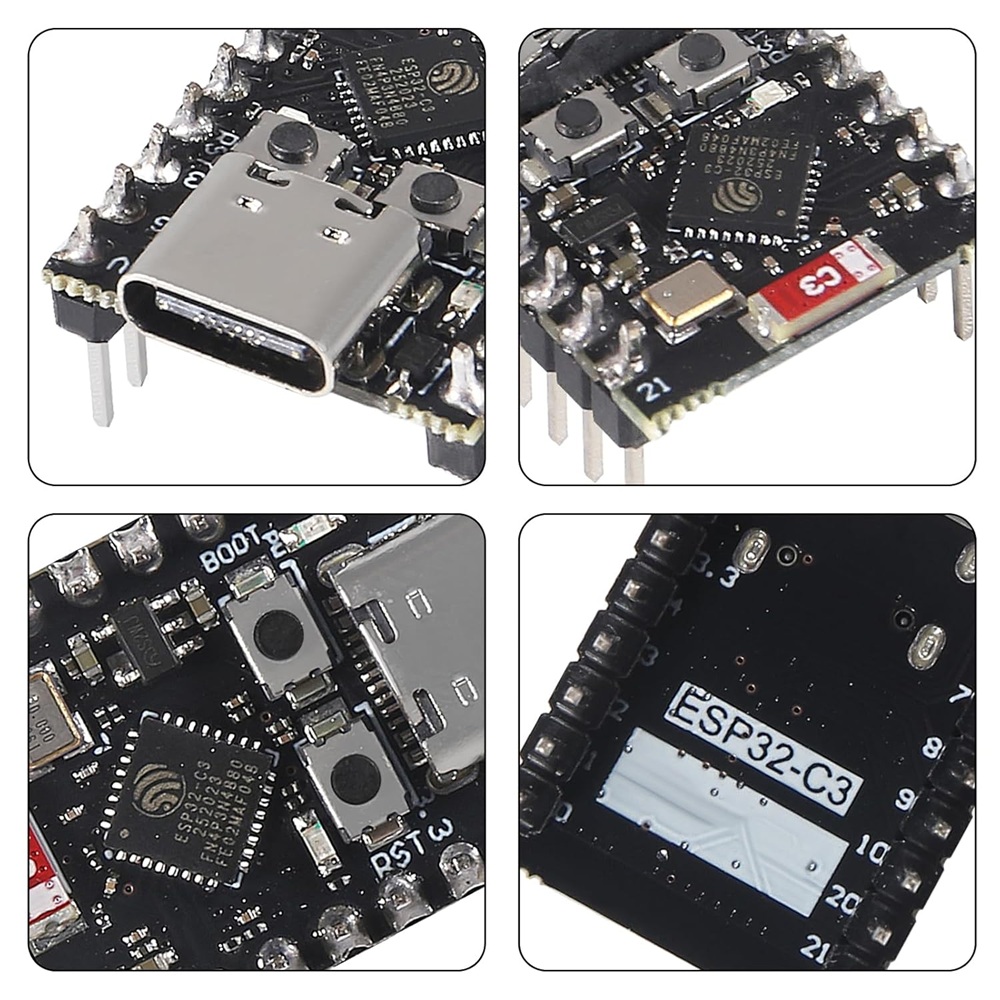

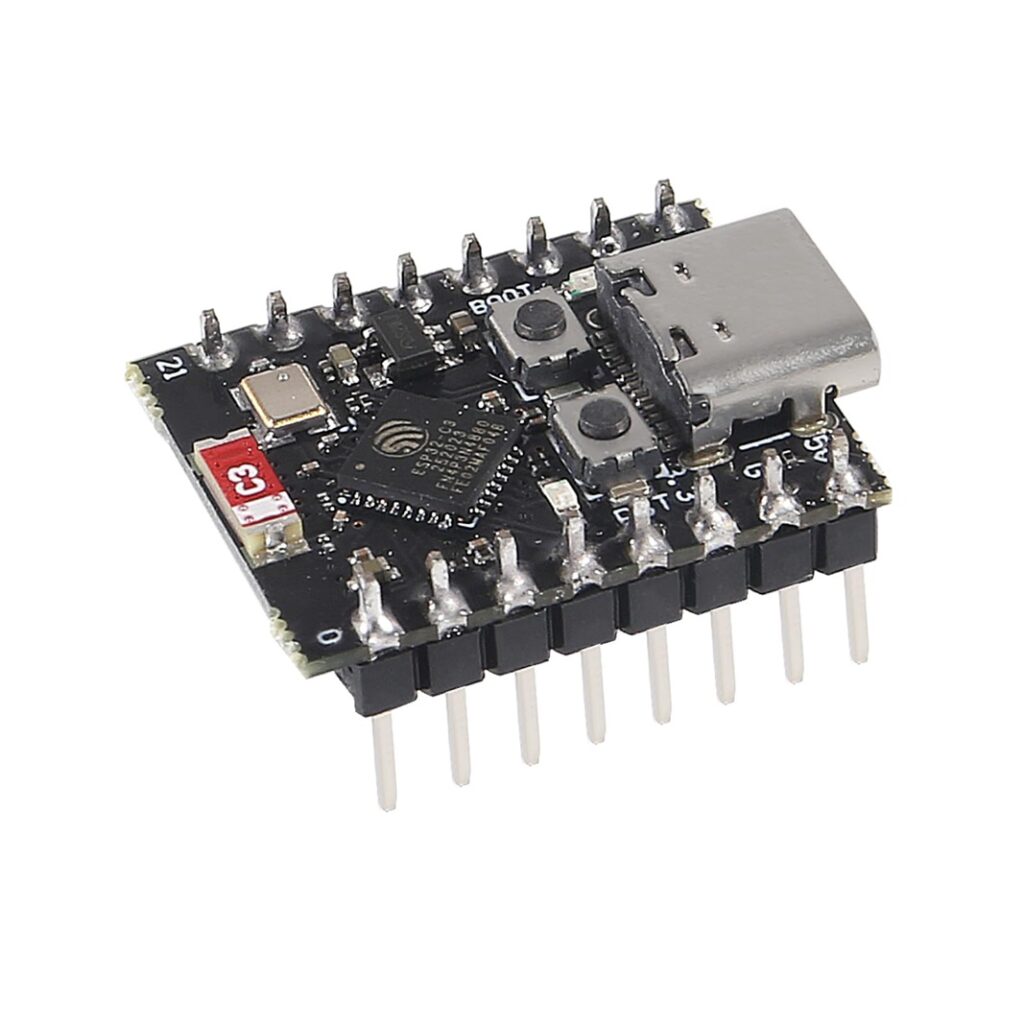

ESP32-C3 Super Mini Development Board Soldered Headers

₹249.00 (inc. GST)

ESP32-C3 32-bit RISC-V CPU @ 160 MHz
Built-in Wi-Fi (802.11 b/g/n) & Bluetooth 5 (LE)
4MB Flash, 400 KB SRAM
USB Type-C for power and programming
Breadboard-friendly super mini form factor
Multiple GPIOs with ADC, PWM, SPI, I2C, UART support
Secure boot & hardware encryption support

14 Items sold in last 3 hours

Add Products worth ₹1000.00 to cart and get free shipping!

In stock

20 People watching this product now!

SKU: RY1429 Categories: ESP Boards and Accessories, Development Boards

Description

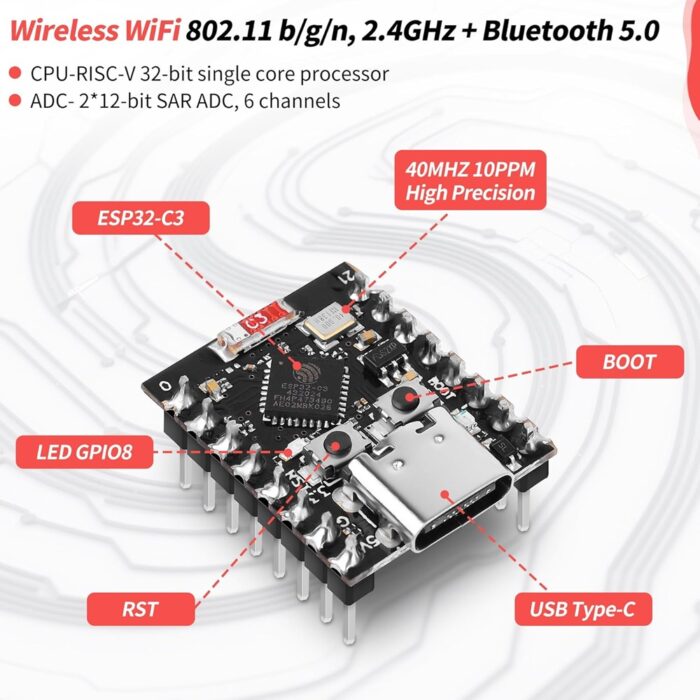

The ESP32-C3 Super Mini Development Board is a compact and powerful development board based on the ESP32-C3 RISC-V microcontroller, featuring integrated Wi-Fi (802.11 b/g/n) and Bluetooth 5 (BLE) connectivity for robust and secure IoT applications.

ESP32-C3 Super Mini Development Board comes with its ultra-small, breadboard-friendly design and USB Type-C interface, this board is ideal for rapid prototyping, embedded projects, and wireless device control. It boasts low power consumption, a range of digital and analog I/O pins, and compatibility with Arduino IDE, ESP-IDF, and MicroPython, making it perfect for makers, students, and professionals working on smart devices, automation, and portable solutions.

Features:

ESP32-C3 single-core 32-bit RISC-V processor, up to 160 MHz.
Integrated IEEE 802.11 b/g/n Wi-Fi and Bluetooth 5.0 Low Energy (BLE) connectivity.
Ultra-compact, breadboard-friendly Super Mini form factor.
Multiple digital I/O and analog input pins, PWM, ADC, UART, SPI, I2C support.
4 MB onboard flash memory and 400 KB SRAM.
USB Type-C interface for easy power and programming.
Low power consumption with deep sleep support, ideal for battery-powered applications.
User-controllable onboard LED.
Compatible with Arduino IDE, PlatformIO, ESP-IDF, and MicroPython.
Integrated USB-to-serial converter for seamless uploading.
Onboard voltage regulator, supports 3.3V—5V input.

Specifications:

Microcontroller: ESP32-C3, 32-bit RISC-V
Core: Single-core, up to 160 MHz
Flash Memory: 4 MB
SRAM: 400 KB
Wi-Fi: IEEE 802.11 b/g/n, 2.4 GHz
Bluetooth: BLE 5.0
Operating Voltage: 3.3V
Input Voltage: 3.3V, 5V (via USB-C)
GPIO: Multiple digital I/O, PWM, ADC
Analog Inputs: Up to 6

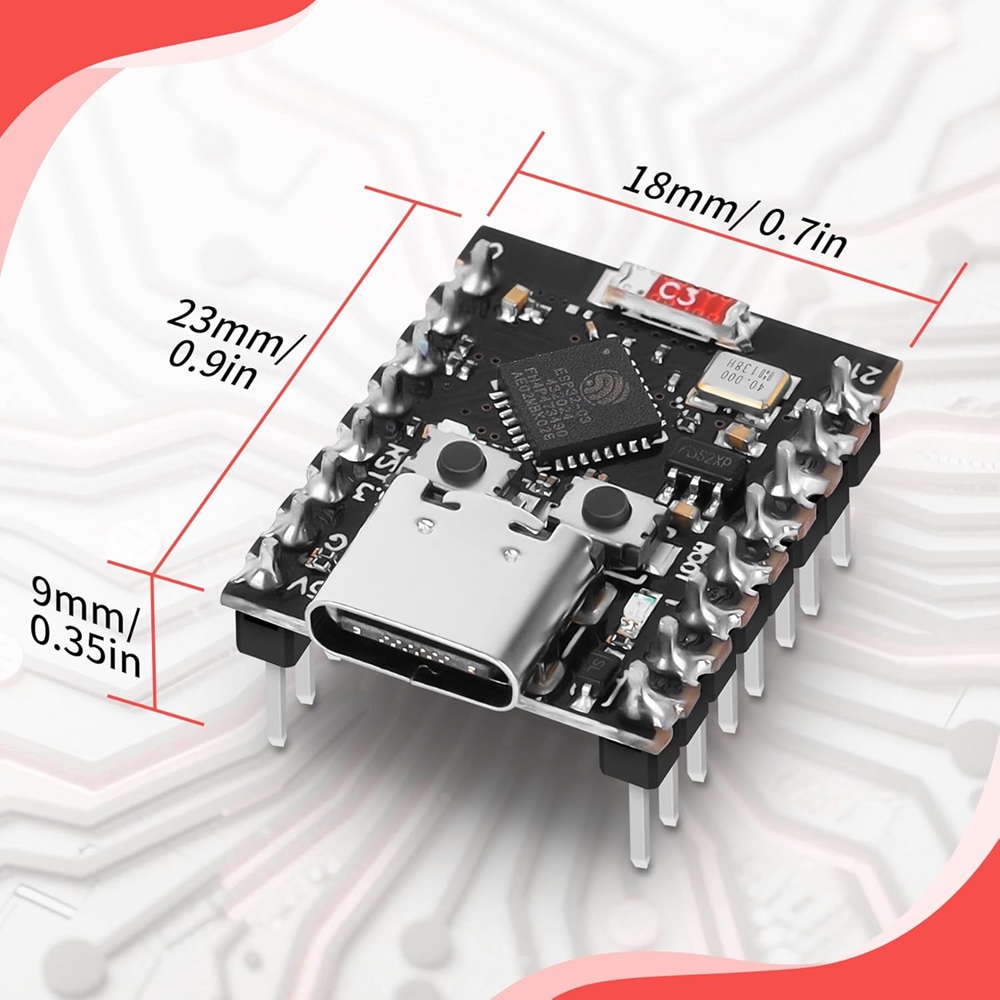

Dimensions: Approx. 22.5 mm x 18 mm
USB Interface: Type-C
Package: UnSoldered headers
Power Consumption: Ultra-low (deep sleep: ~43μA)
Onboard LED: User programmable (GPIO8)

Application:

IoT (Internet of Things) devices and sensor nodes
Smart home automation systems
Wearable technology and fitness trackers
Wireless controllers and BLE devices
Educational robotics and embedded system learning
Prototyping and rapid product development for makers and engineers.

Package Includes:

1 x ESP32-C3 Super Mini Development Board with UnSoldered Headers.

note: This module has Unsoldered Header pins. Image is for reference only.
