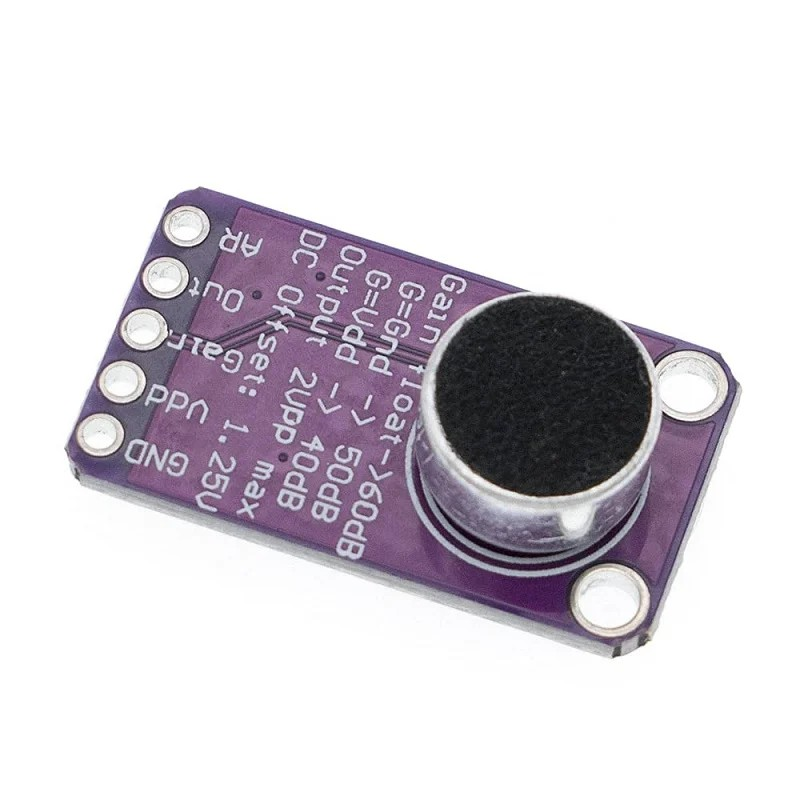

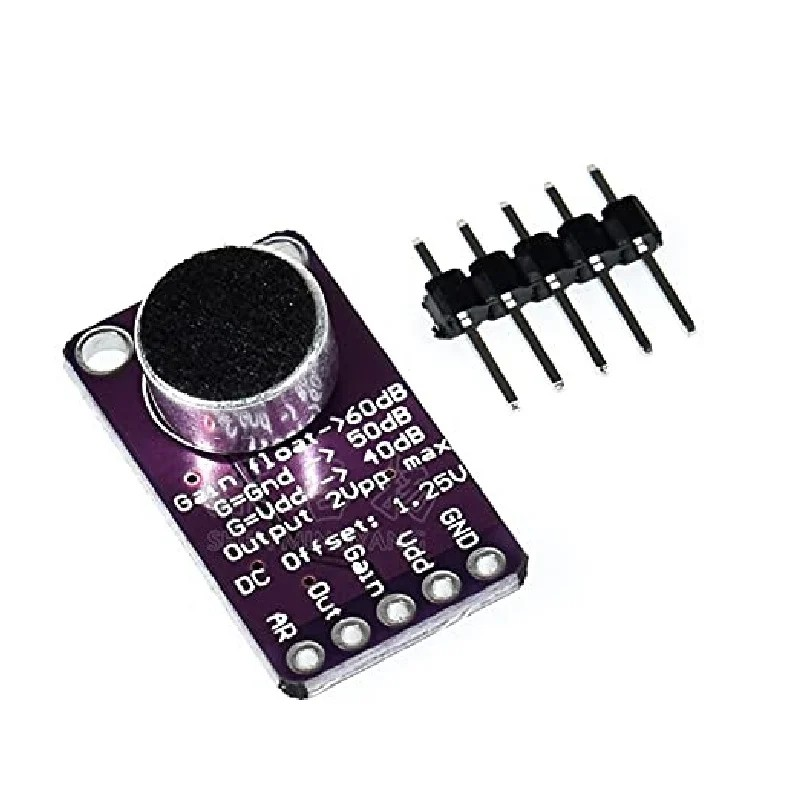

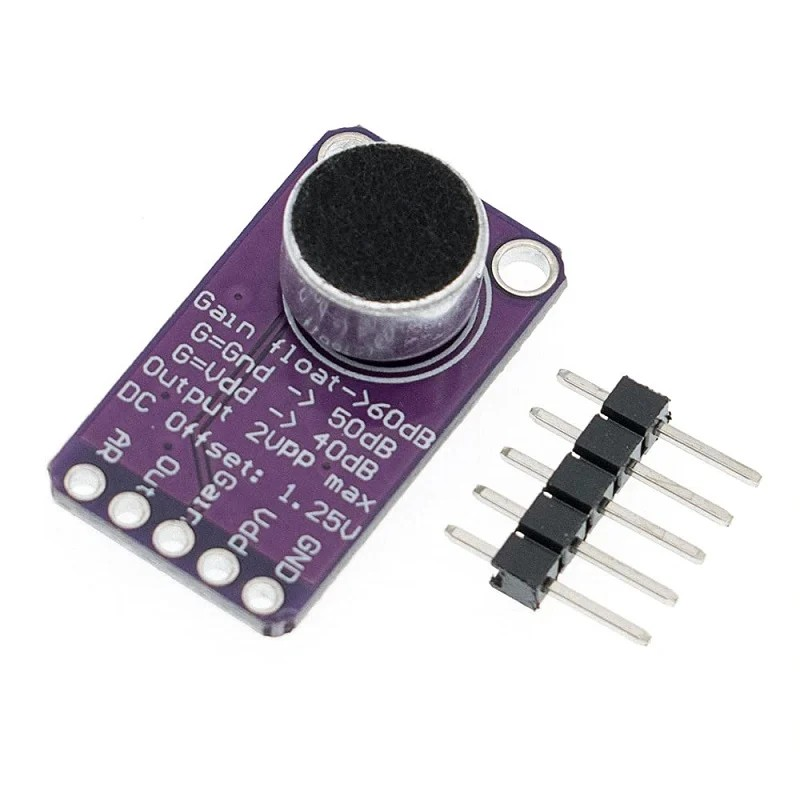

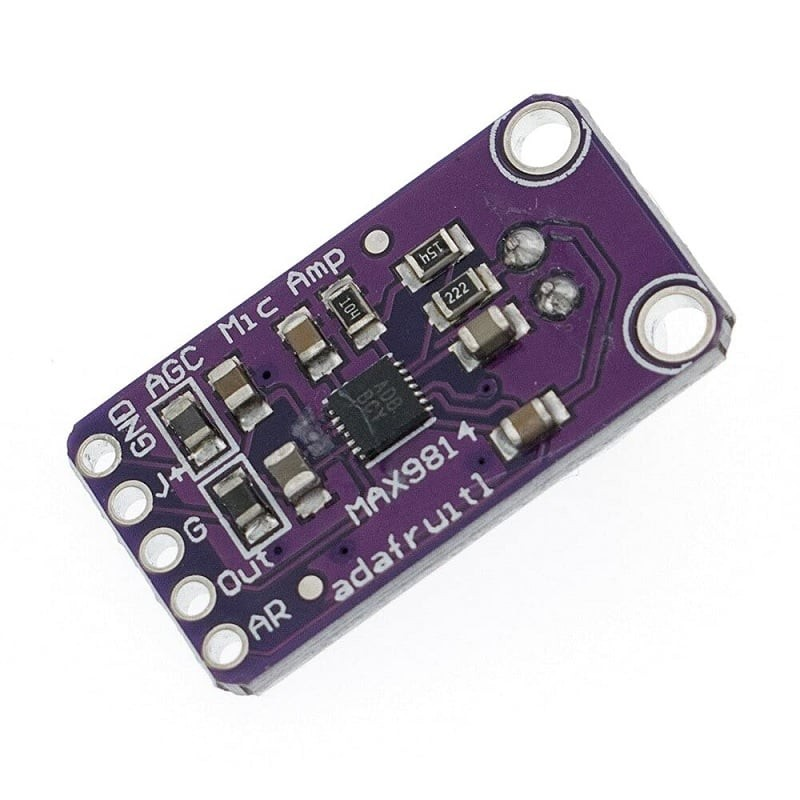

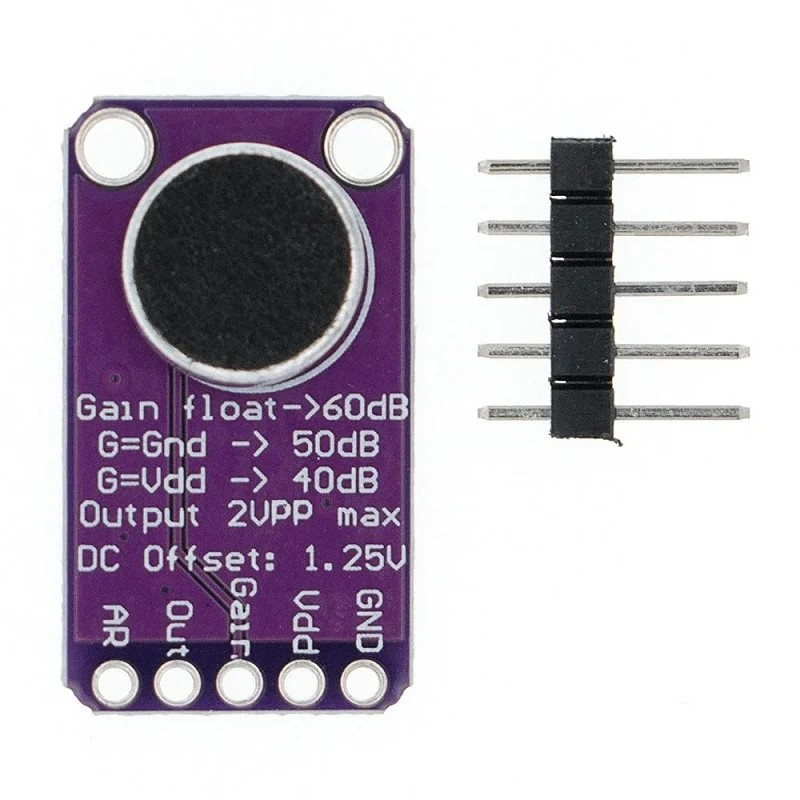

MAX9814 High Performance Microphone AGC Amplifier Module CMA- 4544PF-W
₹189.00 (inc. GST)
You save (%)
- Supply Voltage: 2.7v-5.5v @ 3mA current
- Output: 2Vpp on 1.25V bias
- Frequency Response: 20Hz – 20 KHz
- Programmable Attack and Release Ratio
- Automatic gain, selectable max from 40dB, 50dB, or 60dB
In stock
The MAX9814 High-Performance Microphone AGC Amplifier, model CMA-4544PF-W, is a cutting-edge audio solution designed for capturing and amplifying sound with exceptional clarity. Equipped with an Automatic Gain Control (AGC) system, it automatically adjusts the amplification to accommodate varying audio input levels, ensuring consistent, high-quality output. The compact module features the MAX9814 amplifier chip, renowned for its precision and reliability. Its user-friendly design makes it ideal for a wide range of applications, from voice recording to audio surveillance. The CMA-4544PF-W delivers a reliable, efficient, and compact solution for integrating superior audio performance into electronic projects and devices.
Features:
- Automatic Gain Control (AGC)
- Programmable action time
- Programmable action and release time ratio
- Low-power shutdown mode
- Built-in 2 Volt low noise microphone bias
- Low Input-Referred Noise Density of 30nV/
- Low THD: 0.04% (typical)
Specification
| Operating Voltage (VDC) | 2.7 to 5.5 |
|---|---|
| Current (mA): | 3 |
| Output | 2Vpp on 1.25V bias |
| Frequency Response | 20Hz – 20 KHz |
Package Includes:
1 x MAX9814 High-Performance Microphone AGC Amplifier Module CMA- 4544PF-W
