TPA3110 15W+15W Class D Stereo Audio Amplifier Module
₹99.00 (inc. GST)
You save (%)
- Operating voltage range: 8V to 24V
- Amplifier chip: TPA3110 / HDX8816A
- Output power: 2 x 15W
- Dimension: 25mm x 33mm x 3mm
In stock
Quantity based pricing
| Quantity | Discount (%) | Price |
|---|---|---|
| 1 - 5 | — | ₹99.00 |
| 6 - 11 | 4.04 % | ₹95.00 |
| 12 - 23 | 7.07 % | ₹92.00 |
| 24+ | 9.09 % | ₹90.00 |
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.

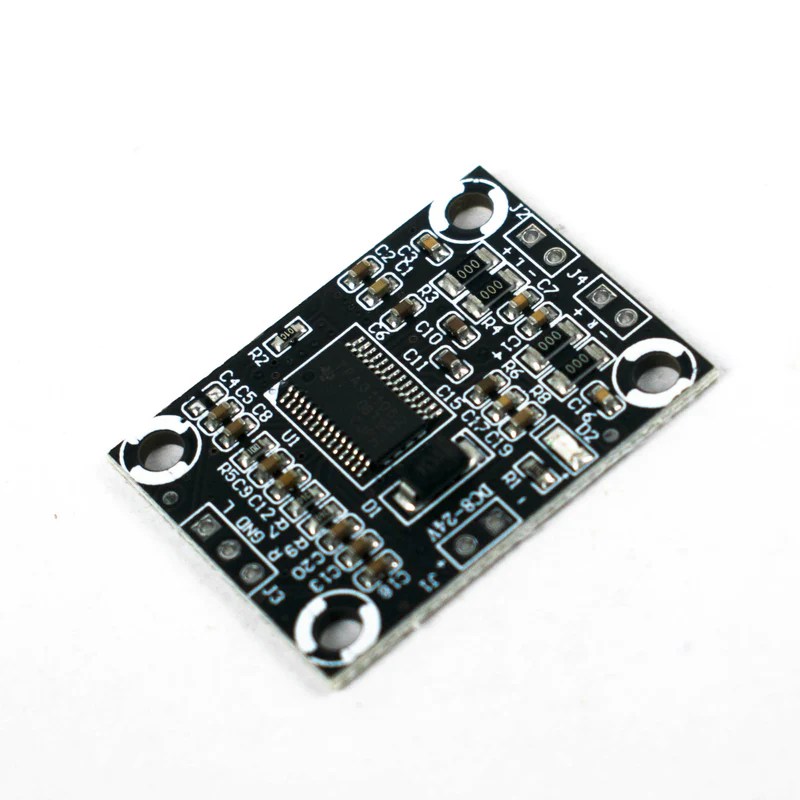

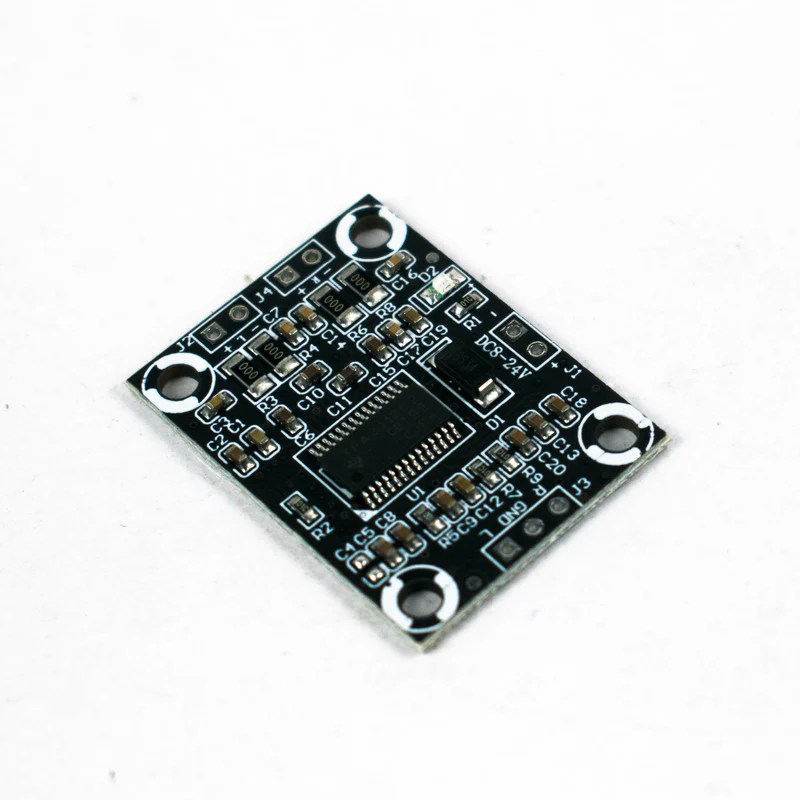

This Dual Channel Stereo Class D Amplifier Board is intended to drive bridged-tied stereo speakers and is built as a 15W (per channel). This Amplifier Board is typically used with 8-ohm speakers, although it can also drive speakers as low as 4 ohms. The Stereo Amplifier performs at a considerably greater efficiency than other renowned ICs in a voltage range of 8V to 24V supply. The onboard TPA3110D2 audio power amplifier chip enables double-track 15W + 15W, with a 4/8 impedance. It is an extremely efficient board that eliminates the requirement for a heat sink. This device is fully secured from GND, VCC, and output-to-output shorts. It is used in various applications like TV, audio devices, Wireless speakers, etc.
Features
- Wide range Input voltage: from 8v to 24v.
- It can be used for applications like cars, vehicles, computer speakers, family audio and video systems, and in your own DIY Music System.
- This amplifier board comes with 4 mounting holes, which is very helpful in tightening the complete circuit board according to your project requirement.
- 3110 power amplifier chip does not require a heat dissipation sink. It has over-current and over-heat protection
SPECIFICATIONS
| Operating Voltage | 8-24V DC |
| Amplifier IC | TPA3110D2 |
| Class | D |
| Rated Power | 15W per Channel |
| No. of Channels | 2 |
| Size | 33×25.6×3.6mm |
