TB6560 Stepper Motor Driver

589.00 (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  • Working voltage:DC 10V-35V. Recommended to use a switching power supply DC24V
  • Rated maximum output: ± 3A, peak 3.5A.
  • Using the Toshiba TB6560AHQ new original chip with low voltage shutdown, overheating stop and over current protection circuit to ensure optimal performance
  • For two-phase within 42,57 stepping 3A / four-phase / of line four / six-wire stepper motor, and is not suitable for more than 3A stepper motor. Automatic half current function
  • 6N137 high-speed optical coupling, guarantee high speed without losing step.

Description

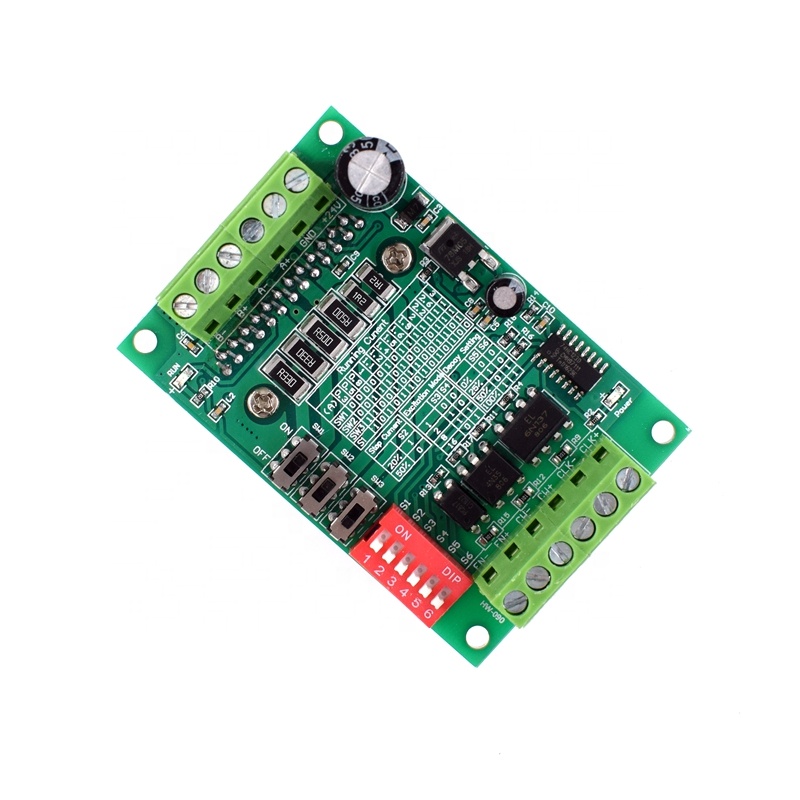

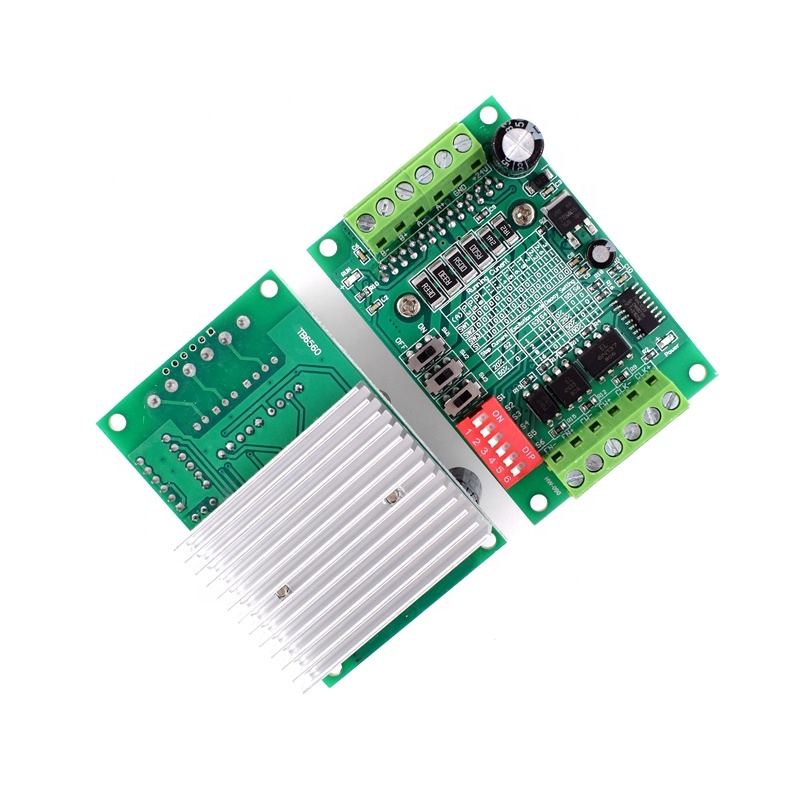

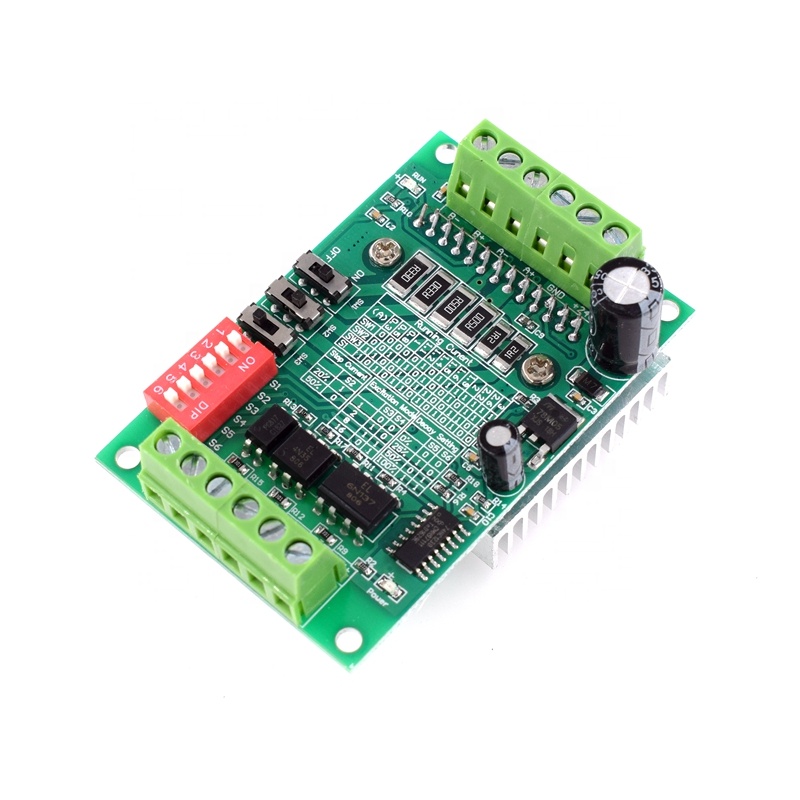

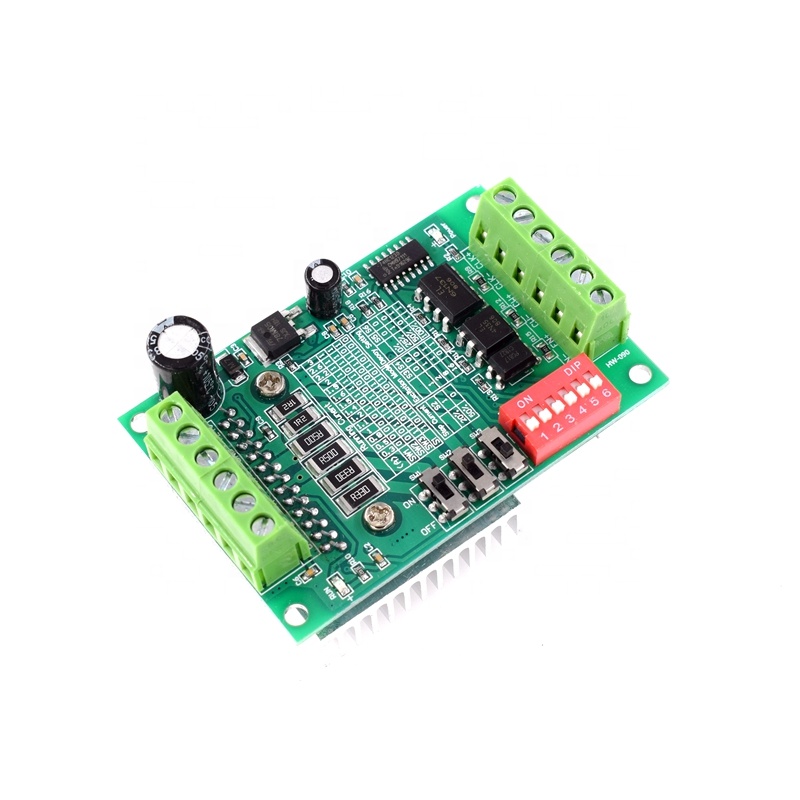

The  TB6560 Stepper Motor Driver is built around the Toshiba TB6560AHQ chip and it can be used to drive two-phase bipolar stepper motors.

With a maximum current of 3 A continuous, the TB6560 driver can be used to control quite large stepper motors like a NEMA 23. Make sure that you do not connect stepper motors with a current rating of more than 3 A to the driver.

The chip has several safety functions built-in like over-current, under-voltage shutdown, and overheating protection. However, it does not have reverse-voltage protection, so make sure that you connect the power supply correctly. You can find more specifications in the table below.

TB6560 Specifications

Operating voltage 10 – 35 VDC, 24 VDC recommended
Max output current 3 A per phase, 3.5 A peak
Microstep resolution full, 1/2, 1/8 and 1/16
Protection Low-voltage shutdown, overheating and over-current protection
Dimensions 75 x 50 x 35 mm
Hole spacing 69 x 43 mm, ⌀ 3.5 mm

Package includes :

1 x TB6560 Stepper Motor Driver
